Description
Belden 19207 010250 Portable Cordage, 3 C #14 Str BC, EPDM Ins, CPE Jkt, UL Type SO
Portable Cordage, 3 Conductor 14AWG (41x30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO
Ordering Details
- Manufacturer Part Number: 19207 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825126799
- Manufacturer Footnote: C F
Supplied as one 250 ft Reel.

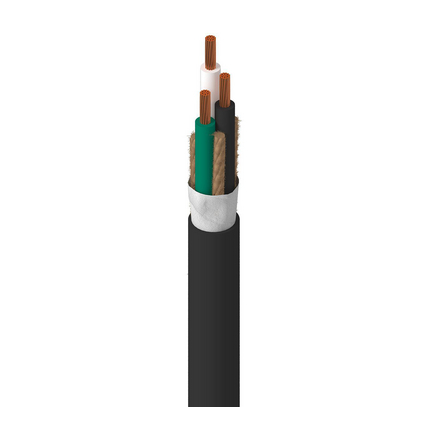

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Portable cordage and cordage
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 14; Stranding: 41x30; Material: BC - Bare Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.048 in (1.2 mm); Nom. Insulation Diameter: 0.170 in (4.32 mm); Color Code: Black, White, Green
- Separator: Paper Tape; Material: CPE - Chlorinated Polyethylene (Thermoset); Nom. Thickness: 0.086 in (2.2 mm); Nom. Diameter: 0.538 in (13.7 mm)
Electrical Characteristics
- Nom. Conductor DCR: 2.76 Ohm/1000ft (9.06 Ohm/km); Max. Current: 18 Amps per Conductor at 25ºC (13 Amps over 50 ft)
- Max. Current: 13 Amps per Conductor at 25ºC (over 50 ft)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 90°C
- Stationary Min.: 5.38 in (137 mm); Installation Min.: 5.38 in (137 mm)
- Max. Pull Tension: 142.5 lbs (64.64 kg)
- Bulk Cable Weight: 161 lbs/1000ft (240 kg/km)
Standards and Compliance
- Environmental Suitability: Oil Resistance
- NEC / UL Compliance: Article 400, SO
- AWM Compliance: SO
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.628 Revision Date: 09-24-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
