Description
Belden 1813A B591000 Audio Cable, 2 Conductor 24 AWG, BC
Audio Cable, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket
Ordering Details
- Manufacturer Part Number: 1813A B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825123392
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

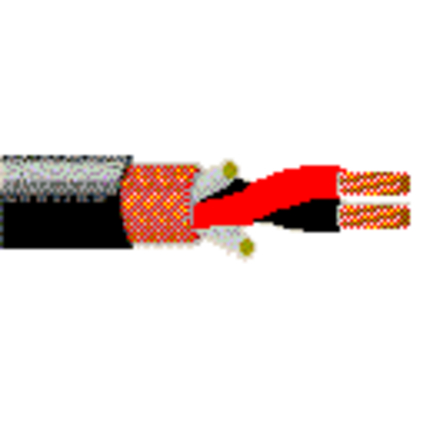

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 24 AWG; Stranding: 27x38; Material: BC - Bare Copper (High Conductivity)
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.059 in mm; Color Code: Blue, Red
- Shield Type: Spiral Serve / Screen; Material: Bare Copper (BC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.055 in (1.4 mm); Nom. Diameter: 0.236 in
- Overall Cable Diameter (Nominal): 0.236 in
Electrical Characteristics
- Nom. Conductor DCR: 22.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 33 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 61 pF/ft (200 pF/m); Nom. Inductance: 0.219 µH/ft (0.719 µH/m); Max. Current: 3.9 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 11.6 Ohm/1000ft (38.1 Ohm/km)
- Voltage Rating: 30 V
Mechanical Characteristics
- Operating: -30°C To +60°C
- Stationary Min.: 7.25 in (184 mm); Installation Min.: 7.25 in
- Max. Pull Tension: 10 lbs (4.5 kg)
- Bulk Cable Weight: 30 lbs/1000ft
Standards and Compliance
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.586 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
