Description
Belden 1812A B591000 Microphone Cable, 2 Conductor 24 AWG, BC
24 AWG stranded (42x40) high-conductivity BC conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC outer jacket.
Ordering Details
- Manufacturer Part Number: 1812A B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825123347
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

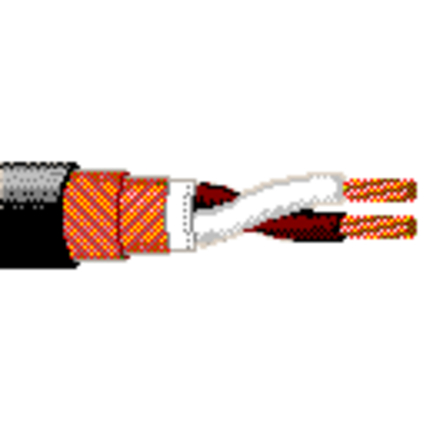

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
Construction Details
- No. of Elements: 2; Size: 24; Stranding: 42x40; Material: BC - Bare Copper (High Conductivity)
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.0115 in (0.292 mm); Nom. Insulation Diameter: 0.047 in (1.2 mm)
- Shield Type: Spiral Serve / Screen; Material: Bare Copper (BC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Nom. Diameter: 0.122 in (3.10 mm)
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.213 in
Electrical Characteristics
- Nom. Conductor DCR: 23.3 Ohm/1000ft (76.4 Ohm/km); Nom. Capacitance Cond-to-Cond: 33 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 54 pF/ft (180 pF/m); Nom. Inductance: 0.196 µH/ft (0.643 µH/m)
- Nom Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km)
- Voltage Rating: 100 V RMS
Mechanical Characteristics
- Operating: -30°C To +60°C
- Max. Pull Tension: 10 lbs (4.5 kg)
- Bulk Cable Weight: 30 lbs/1000ft (45 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.373 Revision Date: 11-06-2026
- Footnote: C - CRATE REEL PUT-UP.
