Belden 1804A J5C500 Microphone Cable, Star Quad, 4 C #28 Str Silvered Copper Alloy, 80% TC Braid, PVC Jkt - Black, Vivid Matte, 500 ft Reel

$1,628.99
SKU:
1804A J5C500
Shipping:
Calculated at Checkout
Color:
Black, Vivid Matte
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1804A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1804A J5C500 Microphone Cable, Star Quad, 4 C #28 Str Silvered Copper Alloy, 80% TC Braid, PVC Jkt

Microphone Cable, Star Quad, 4 Conductor 28 AWG (19 x 40) High Conductivity Silvered Copper Alloy, PP insulation, 80% Tinned Copper Braid Shield, PVC jacket

Ordering Details

  • Manufacturer Part Number: 1804A J5C500
  • Color: Black, Vivid Matte
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825123156
  • Manufacturer Footnote: F

Supplied as one 500 ft Reel.

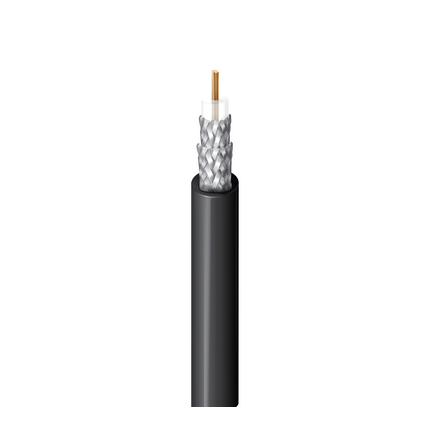

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Microphone, Low Noise for high-EMI environments; Line level balanced analog audio

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 28 AWG; Stranding: 19x40; Material: SCA - Silvered Copper Alloy (High Conductivity)
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.008 in (0.20 mm); Nom. Insulation Diameter: 0.03 in (0.76 mm); Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 80%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.115 in (2.92 mm)
  • Overall Cable Diameter (Nominal): 0.115 in (2.92 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 65 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 40 pF/ft (130 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 60 pF/ft (200 pF/m); Nom. Characteristic Impedence: 40 Ohm; Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 1.6 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 7.923 Ohm/1000ft (25.99 Ohm/km)
  • Voltage Rating: 100 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -30°C to +60°C
  • Stationary Min.: 1.2 in (30 mm); Installation Min.: 1.2 in (30 mm)
  • Max. Pull Tension: 9.2 lbs (4.2 kg)
  • Bulk Cable Weight: 9 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor

Product Notes

  • Notes: Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.

History

  • Update and Revision: Revision Number: 0.492 Revision Date: 09-07-2025
  • Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
