Belden 1192A B59500 Microphone Cable, Star Quad, 4 C #24 Str BC, 92% TC Braid, PVC Jkt - Black, Matte, 500 ft Reel

$1,271.99
SKU:
1192A B59500
Shipping:
Calculated at Checkout
Color:
Black, Matte
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1192A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1192A B59500 Microphone Cable, Star Quad, 4 C #24 Str BC, 92% TC Braid, PVC Jkt

Microphone Cable, Star Quad, 4 Conductor 24 AWG (42 x 40) High Conductivity Bare Copper, PE Insulation, 92% Tinned Copper Braid Shield, PVC Jacket

Ordering Details

  • Manufacturer Part Number: 1192A B59500
  • Color: Black, Matte
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825108214
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

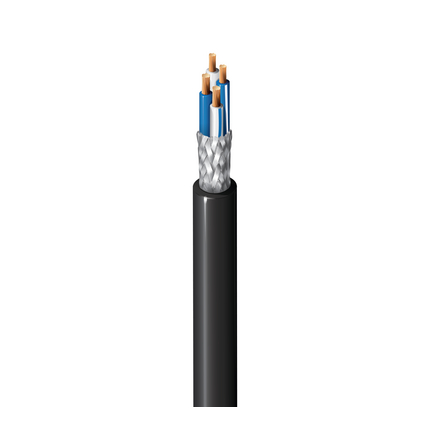

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Microphone, Low Noise for high-EMI environments; Line level balanced analog audio

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 24 AWG; Stranding: 42x40; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.056 in (1.4 mm); Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 92%; Notes: Paper tape under braid
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.044 in (1.1 mm); Nom. Diameter: 0.245 in (6.22 mm)
  • Overall Cable Diameter (Nominal): 0.245 in (6.22 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 26.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 39.2 pF/ft (129 pF/m); Nom. Characteristic Impedence: 40 Ohm; Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 3.04 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 7.1 Ohm/1000ft (23 Ohm/km)
  • Voltage Rating: 100 V

Mechanical Characteristics

  • Operating: -30°C to +75°C
  • Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
  • Max. Pull Tension: 47.2 lbs (21.4 kg)
  • Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.

History

  • Update and Revision: Revision Number: 0.517 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
