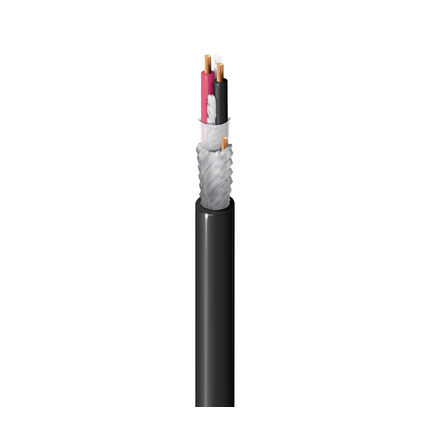

Belden 1800F B59500 Digital Microphone Cable, 1 Pr #24 Str BC, 95% TC French Braid, PVC Jkt, CL2R, Flexible
Digital Microphone Cable, 1 Pair 24 AWG (42x40) Bare Copper, PE insulation, 95% Tinned Copper French Braid Shield, Matte PVC jacket, CL2R-rated, Flexible
Ordering Details
- Manufacturer Part Number: 1800F B59500
- Color: Black, Matte
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825122845
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Digital microphone; Flexible interconnect cable for digital audio
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 42x40; Material: BC - Bare Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.058 in (1.5 mm); Color Code: Red & Black; Notes: HDPE
- Shield Type: French Braid; Material: Tinned Copper (TC); Coverage: 95%; Drainwire Type: 26 AWG (30x40) BC; Notes: Paper tape under braid with drain over tape
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.211 in (5.36 mm)
- Overall Cable Diameter (Nominal): 0.211 in (5.36 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 23.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft (85 pF/m); Nom. Characteristic Impedence: 110 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 3.8 Amps per conductor @ 30°C
- Nom Outer Shield DCR: 6.42 Ohm/1000ft (21.1 Ohm/km)
- Nom. Insertion Loss (Attenuation): 0.46 dB/100ft
- Nom. Insertion Loss (Attenuation): 0.67 dB/100ft
- Nom. Insertion Loss (Attenuation): 0.7 dB/100ft
- Nom. Insertion Loss (Attenuation): 0.83 dB/100ft
- Nom. Insertion Loss (Attenuation): 1.04 dB/100ft
- Nom. Insertion Loss (Attenuation): 1.09 dB/100ft
- Nom. Insertion Loss (Attenuation): 1.3 dB/100ft
- Nom. Insertion Loss (Attenuation): 1.66 dB/100ft
- Nom. Insertion Loss (Attenuation): 1.75 dB/100ft
- Nom. Insertion Loss (Attenuation): 2.23 dB/100ft
- Nom. Insertion Loss (Attenuation): 2.89 dB/100ft
- Nom. Insertion Loss (Attenuation): 3.07 dB/100ft
- Nom. Insertion Loss (Attenuation): 3.71 dB/100ft
- Nom. Insertion Loss (Attenuation): 4.53 dB/100ft
- Nom. Insertion Loss (Attenuation): 4.78 dB/100ft
- Nom. Insertion Loss (Attenuation): 7.11 dB/100ft
- Voltage Rating: 100 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
- Max. Pull Tension: 40 lbs (18 kg)
- Bulk Cable Weight: 23 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL 1666 Riser
- NEC / UL Compliance: Article 725, CL2R
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): AES/EBU
History
- Update and Revision: Revision Number: 0.523 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
