Belden 1673J 010500 50 Ohm Microwave, RG402, #19 SPCCS, PVC Jacket - Black, 500 ft Reel

$5,925.99
SKU:
1673J 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1673J
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1673J 010500 50 Ohm Microwave, RG402, #19 SPCCS, PVC Jacket

RG-402/U type, 19 AWG solid .036" silver-plated copper-covered steel conductor, TFE Teflon® Insulation, copper-tin composite shield (100% coverage), PVC jacket.

Ordering Details

  • Manufacturer Part Number: 1673J 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825120469
  • Manufacturer Footnote: C V

Supplied as one 500 ft Reel.

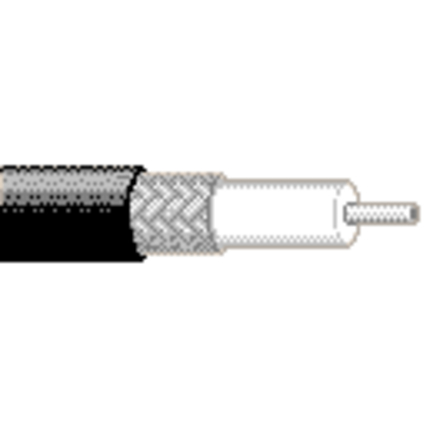

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • RG Type: 402
  • Size: 19; Stranding: Solid; Nom. Diameter: 0.036 in; Material: SCCS - Silvered Copper Covered Steel
  • Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.116 in (2.95 mm)
  • Layer: 1; Outer Shield Type: Tape; Material: Bare Copper (BC); Coverage: 100%
  • Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC + Tin Filled); Coverage: 100%
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.178 in

Electrical Characteristics

  • Frequency: 500 MHz; Max. VSWR: 1.1
  • Frequency: 20000 MHz; Max. VSWR: 1.3
  • Frequency: 500 MHz; Nom. Attenuation: 8 dB/100ft; Max. Attenuation: 9.5 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 12 dB/100ft; Max. Attenuation: 14.5 dB/100ft
  • Frequency: 2000 MHz; Nom. Attenuation: 18.1 dB/100ft; Max. Attenuation: 26.5 dB/100ft
  • Frequency: 3000 MHz; Nom. Attenuation: 22.9 dB/100ft; Max. Attenuation: 36 dB/100ft
  • Frequency: 5000 MHz; Nom. Attenuation: 31 dB/100ft; Max. Attenuation: 54 dB/100ft
  • Frequency: 7000 MHz; Nom. Attenuation: 37.8 dB/100ft; Max. Attenuation: 84 dB/100ft
  • Frequency: 10000 MHz; Nom. Attenuation: 46.6 dB/100ft
  • Frequency: 15000 MHz; Nom. Attenuation: 59.1 dB/100ft
  • Frequency: 18000 MHz; Nom. Attenuation: 65.8 dB/100ft
  • Frequency: 20000 MHz; Nom. Attenuation: 70 dB/100ft
  • Frequency: 500 MHz; Max. Power Rating: 600 W
  • Frequency: 1,000 MHz; Max. Power Rating: 401 W
  • Frequency: 2,000 MHz; Max. Power Rating: 268 W
  • Frequency: 3,000 MHz; Max. Power Rating: 211 W
  • Frequency: 5,000 MHz; Max. Power Rating: 157 W
  • Frequency: 7,000 MHz; Max. Power Rating: 129 W
  • Frequency: 10,000 MHz; Max. Power Rating: 105 W
  • Frequency: 15,000 MHz; Max. Power Rating: 83 W
  • Frequency: 18,000 MHz; Max. Power Rating: 74 W
  • Frequency: 20,000 MHz; Max. Power Rating: 70 W
  • Nom. Conductor DCR: 20.5 Ohm/1000ft (67.3 Ohm/km); Nom. Outer Shield DCR: 4.5 Ohm/1000ft (15 Ohm/km); Nom. Capacitance Cond-to-Shield: 29.5 pF/ft (96.8 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
  • UL Voltage Rating: 30 V RMS; Voltage Rating: 1900 V RMS

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -40°C To +105°C
  • Installation Min.: 0.25 in
  • Max. Pull Tension: 70 lbs (32 kg)
  • Bulk Cable Weight: 32 lbs/1000ft (48 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor
  • Flammability / Reaction to Fire: Horizontal Wire
  • AWM Compliance: AWM 10245
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

  • Update and Revision: Revision Number: 0.405 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP., V - 250' PUT-UP EXACT LENGTH MAXIMUM OF 3 PIECES, MINIMUM LENGTH 50'. 500' PUT-UP EXACT LENGTH MAXIMUM OF 5 PIECES, MINIMUM LENGTH 50'. 1000' PUT-UP EXACT LENGTH MAXIMUM OF 8 PIECES, MINIMUM LENGTH 50'.

Resources

Belden 1673J Product Information
