Description

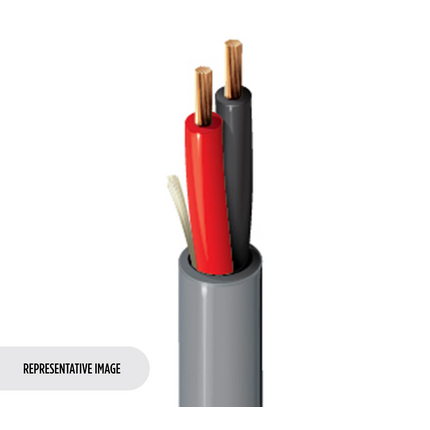

Belden 1309A 0101000 Speaker Cable, 2 C #14 Str BC-OFHC, PVC Jkt, CM, DIR BUR, Flexible
Speaker Cable, 2 Conductor 14 AWG (105 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible
Ordering Details
- Manufacturer Part Number: 1309A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825111450
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 14 AWG; Stranding: 105x34; Material: BC - Bare Copper (High Conductivity)
- Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.105 in (2.67 mm); Color Code: Black, Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.027 in (0.69 mm); Nom. Diameter: 0.264 in (6.71 mm)
- Overall Cable Diameter (Nominal): 0.264 in (6.71 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 2.67 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 20.5 pF/ft (67.3 pF/m); Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 25 Amps per conductor @ 30°C
- UL Voltage Rating: 300 V (CM, CL3)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C
- Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
- Max. Pull Tension: 104 lbs (47.2 kg)
- Bulk Cable Weight: 42 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial
- Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 800, CL3, CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6100UE
Product Notes
- Notes: Jacket has ROOM 1 2 3 4 5 6 7 8 9 0 ZONE A B C D printed on it.
History
- Update and Revision: Revision Number: 0.497 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
