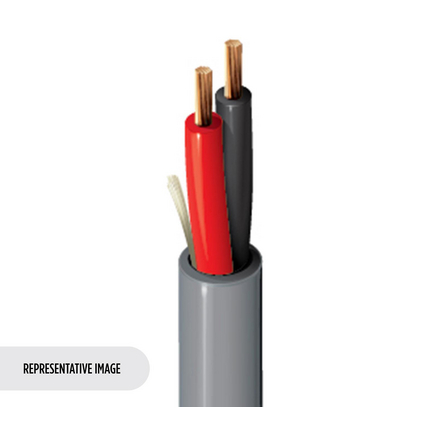

Belden 1307A 0101000 Speaker Cable, 2 C #16 Str BC-OFHC, PVC Jkt, CM, DIR BUR, Flexible - Black, 1,000 ft Reel

$710.99
SKU:
1307A 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1307A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1307A 0101000 Speaker Cable, 2 C #16 Str BC-OFHC, PVC Jkt, CM, DIR BUR, Flexible

Speaker Cable, 2 Conductor 16 AWG (65 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible

Ordering Details

  • Manufacturer Part Number: 1307A 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825111290
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Speaker Cable; Direct Burial; Indoor/Outdoor Home Theater; In-Wall Speaker; Outdoor Speaker

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 16 AWG; Stranding: 65x34; Material: BC - Bare Copper (High Conductivity)
  • Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.083 in (2.1 mm); Color Code: Black, Red
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Diameter: 0.210 in (5.33 mm)
  • Overall Cable Diameter (Nominal): 0.210 in (5.33 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.27 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 19.9 pF/ft (65.3 pF/m); Nom. Inductance: 0.16 µH/ft (0.52 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 18 Amps per conductor @ 30°C
  • UL Voltage Rating: 300 V (CM, CL3)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
  • Max. Pull Tension: 65 lbs (29 kg)
  • Bulk Cable Weight: 27 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor, Burial
  • Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CL3, CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6200UE

Product Notes

  • Notes: Jacket has ROOM 1 2 3 4 5 6 7 8 9 0 ZONE A B C D printed on it.

History

  • Update and Revision: Revision Number: 0.497 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.
