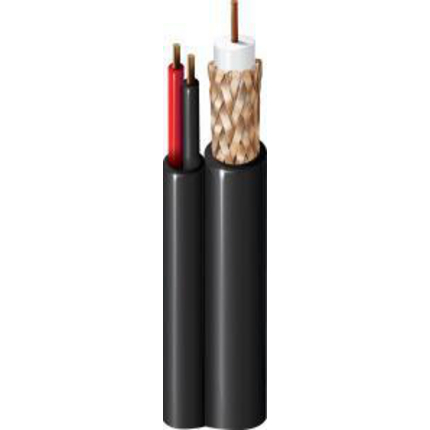

Belden 1306SB 0101000 Composite Shipboard, 18 AWG Coax Video, 1 PR 18 AWG Power - Black, 1,000 ft Reel

$3,495.99
SKU:
1306SB 0101000
Minimum Purchase:
14 units
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1306SB
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1306SB 0101000 Composite Shipboard, 18 AWG Coax Video, 1 PR 18 AWG Power

Composite Shipboard, 18 AWG Coax BC, BC Braid Shield 95% coverage, FPE insulation for video and 1 PR 18 AWG BC, stranded (7x26), PP insulation for power, overall CMG-LS rating, LSZH jacket.

Ordering Details

  • Manufacturer Part Number: 1306SB 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825111221
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), Shipboard, Low Smoke

Construction Details

  • RG Type: 6
  • Size: 18; Stranding: Solid; Nom. Diameter: 0.04 in; Material: BC - Bare Copper
  • Size: 18; Stranding: 7x26; Nom. Diameter: 0.046 in; Material: BC - Bare Copper
  • Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.18 in (4.6 mm); Color Code: Black and Red
  • Material: PP - Polypropylene; Nom. Insulation Diameter: 0.058 in (1.5 mm)
  • Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Layer: 1; Outer Shield Type: Braid; Material: Bare Copper (BC); Coverage: 95%
  • Material: LSZH - Low Smoke Zero Halogen (Flame Retardant); Nom. Diameter: 0.275x0.514 in

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 0.2 dB/100ft
  • Frequency: 5 MHz; Nom. Attenuation: 0.45 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 0.64 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 1.46 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 2.1 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 3.0 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 4.3 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 5.8 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 6.7 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 7.1 dB/100ft
  • Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km); Nom. Inner Shield DCR: 3.1 Ohm/1000ft (10 Ohm/km); Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 82%
  • Nom. Conductor DCR: 6.4 Ohm/1000ft (21 Ohm/km)
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: -30°C To +75°C
  • Max. Pull Tension: 114 lbs (51.7 kg)
  • Bulk Cable Weight: 67 lbs/1000ft (100 kg/km)

Standards and Compliance

  • Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
  • Flammability / Reaction to Fire: UL1685 FT4 Loading, Limited Smoke, IEEE 1202, IEC 60332-1-2, IEC 60332-3-22
  • CPR Compliance: CPR Euroclass: Fca
  • NEC / UL Compliance: Article 800, CMG-ST1
  • CEC / C(UL) Compliance: CMG-ST1
  • IEEE Compliance: Std. 45 Clause 23
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Coax jacket diameter: .275 in, Pair jacket diameter: .204 in

History

  • Update and Revision: Revision Number: 0.311 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.
