Belden 1117A 0065000 Type TX Thermocouple, 1 Pr #16 Sol, FEP Ins Blu, Red, OS, Blue FEP Jkt, 300V PLTC CL2P 200C SUN RES - Blue, Light, 5,000 ft Reel

$26,055.99
SKU:
1117A 0065000
Shipping:
Calculated at Checkout
Color:
Blue, Light
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1117A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1117A 0065000 Type TX Thermocouple, 1 Pr #16 Sol, FEP Ins Blu, Red, OS, Blue FEP Jkt, 300V PLTC CL2P 200C SUN RES

Type TX Thermocouple, 1 Pair 16AWG (Solid) OFHC+Constantan, FEP Insulation Blu, Red Color Code, Overall Beldfoil® Shield, Blue FEP Outer Jacket, PLTC CL2P 200C SUN RES

Ordering Details

  • Manufacturer Part Number: 1117A 0065000
  • Color: Blue, Light
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825107071
  • Manufacturer Footnote: C Z

Supplied as one 5,000 ft Reel.

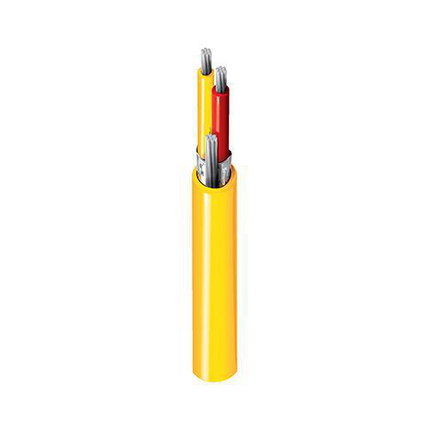

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC)

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: Solid; Material: Copper & Constantan
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.010 in (0.25 mm); Color Code: Blue & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.012 in (0.30 mm); Nom. Diameter: 0.170 in (4.32 mm)
  • Overall Cable Diameter (Nominal): 0.170 in (4.32 mm)

Electrical Characteristics

  • Element: Pair(s)
  • Electricals Table Notes: Conductor DCR (Nom): 10 Ohm/1000ft 9Copper), 121 Ohm/1000ft (Constantan)
  • Nom Outer Shield DCR: 5.5 Ohm/1000ft (18 Ohm/km)
  • UL Voltage Rating: 300 V (PLTC), 300 V (CL3P)

Mechanical Characteristics

  • UL Temperature: 200°C; Operating: -70°C to +200°C
  • Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
  • Max. Pull Tension: 83 lbs (38 kg)
  • Bulk Cable Weight: 32 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum)
  • NEC / UL Compliance: Article 725, CL3P, PLTC
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA MC 96.1-1982 Type TX

Product Notes

  • Notes: Constantan is a Hoskins Manufacturing Company trademark.

History

  • Update and Revision: Revision Number: 0.537 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
