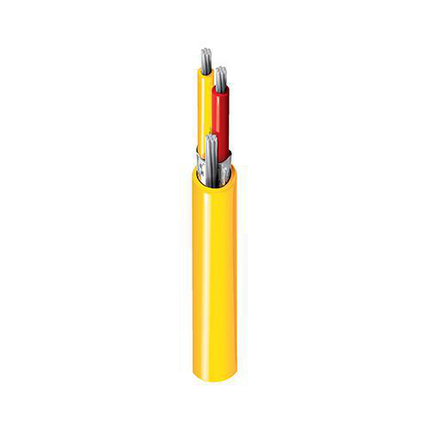

Belden 1114A 0075000 Type EX Thermocouple, 1 Pr #16 Sol, FEP Ins Wht, Red, OS, Purple FEP Jkt, 300V PLTC CL2P 200C SUN RES
Type EX Thermocouple, 1 Pair 16AWG (Solid) Chromel+Constantan, FEP Insulation Wht, Red Color Code, Overall Beldfoil® Shield, Purple FEP Outer Jacket, PLTC CL2P 200C SUN RES
Ordering Details
- Manufacturer Part Number: 1114A 0075000
- Color: Violet
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825107019
- Manufacturer Footnote: C Z
Supplied as one 5,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC)
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: Solid; Material: Chromel & Constantan
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.010 in (0.25 mm); Color Code: Purple & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.012 in (0.30 mm); Nom. Diameter: 0.172 in (4.37 mm)
- Overall Cable Diameter (Nominal): 0.172 in (4.37 mm)
Electrical Characteristics
- Element: Pair(s)
- Electricals Table Notes: Conductor DCR (Nom): 165 Ohm/1000ft (Chromel), 121 Ohm/1000ft (Constantan)
- Nom Outer Shield DCR: 5.5 Ohm/1000ft (18 Ohm/km)
- UL Voltage Rating: 300 V (PLTC), 300 V (CL3P)
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C to +200°C
- Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
- Max. Pull Tension: 83 lbs (38 kg)
- Bulk Cable Weight: 31 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), T-29-520
- NEC / UL Compliance: Article 725, CL3P, PLTC
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ISA MC 96.1-1982 Type EX
Product Notes
- Notes: Chromel and Constantan are Hoskins Manufacturing Company trademarks.
History
- Update and Revision: Revision Number: 0.565 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
