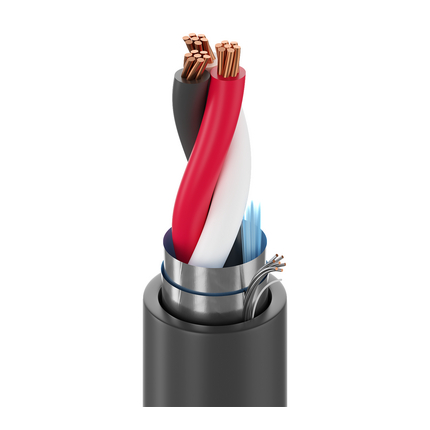

Belden 1035A 0101000 Inst, 1 Pr #16 Str BC, PVC Ins E1, Blk PVC Jkt, 300V PLTC ITC CMG
UL Instrumentation, 1 Pair 16AWG (7x24) Bare Copper, PVC Insulation E1 Color Code, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES
Ordering Details
- Manufacturer Part Number: 1035A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825105091
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: 7x24; Material: BC - Bare Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.091 in (2.3 mm); Color Code: ICEA Chart E1
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.256 in (6.50 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.256 in (6.50 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 4.36 Ohm/1000ft; Max. Current: 18 Amps per conductor @ 30°C
- UL Voltage Rating: 300 V (CMG, CL3, PLTC, AWM 2464), 150 V (ITC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
- Max. Pull Tension: 71 lbs (32 kg)
- Bulk Cable Weight: 34 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, CL3, PLTC, ITC
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.621 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
