Description
Belden 1032A 0101000 Inst, 1 Pr #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG
UL Instrumentation, 1 Pair 18AWG (7x26) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES
Ordering Details
- Manufacturer Part Number: 1032A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825104988
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

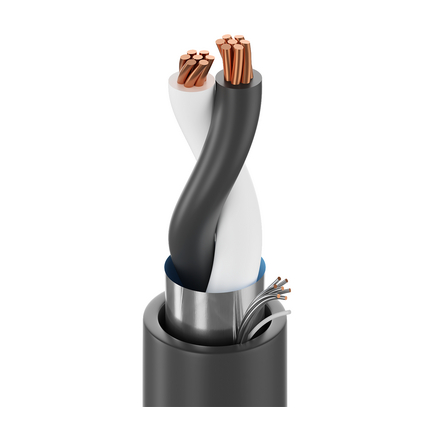

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.080 in (2.0 mm); Color Code: ICEA Chart E1
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.237 in (6.02 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.237 in (6.02 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 5.86 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 51 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 95 pF/ft (310 pF/m); Nom. Inductance: 0.19 µH/ft (0.62 µH/m); Max. Current: 14 Amps per conductor @ 30°C
- Nom Outer Shield DCR: 12.8 Ohm/1000ft (42.0 Ohm/km)
- UL Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Stationary Min.: 2.8 in (71 mm); Installation Min.: 2.8 in (71 mm)
- Max. Pull Tension: 58 lbs (26 kg)
- Bulk Cable Weight: 30 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC, CL3
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.700 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
