Description
DESCRIPTION

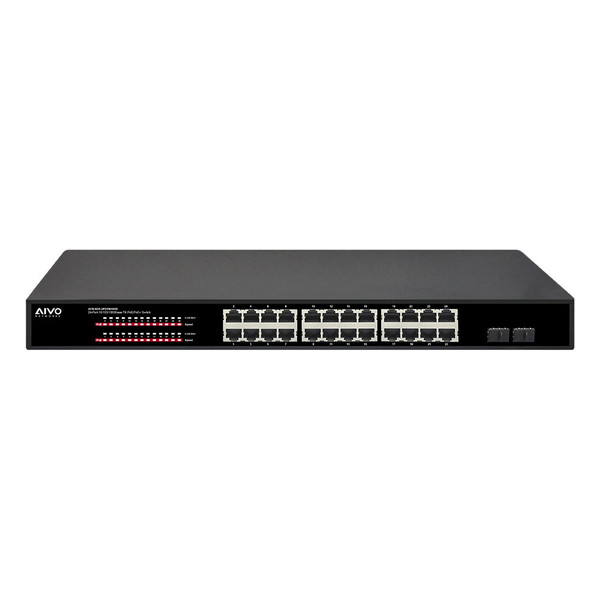

The AVN-S24-2P24W400G is a 18G PoE Switch that provides 24 10/100/100M RJ45 Ports, 2 1000M SFP fiber ports, is beneficial in the larger applications. It provides 24 PoE ports. The PoE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP Cameras, etc. The AVN-S24-2P24W400G is a 19’’ standard 1U rack-mountable. All PoE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.
FEATURES
- IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at
- 24 10/100/1000 Base-TX ports and 2 1000M SFP Ports
- 24 PoE ports, Each PoE port output 30W max power
- Total Wattage 400W
- High back-plane bandwidth 52Gbps
- Up to 8k MAC address table size
- IEEE802.3x Flow control
- 19’’ rack-mounted size metal case for the PoE switch
- Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
