Product Overview

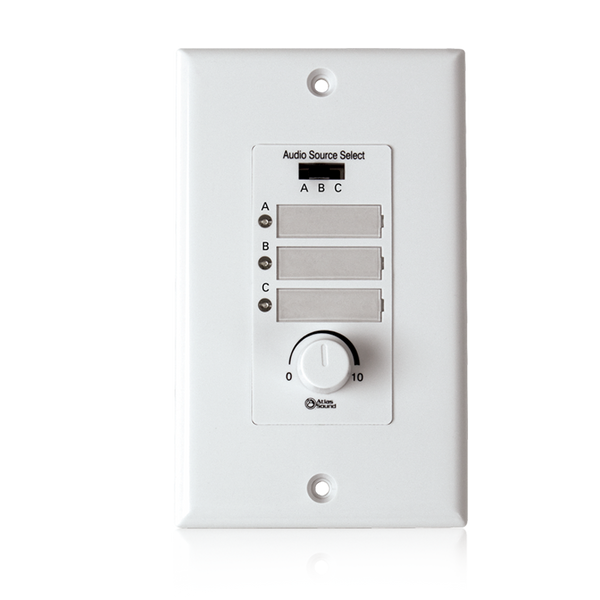

The WPD-MIX42RT is a decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.
- Designed for Remote Activation of Atlas TSD-MIX42RT
- Input Select Slide Switch
- Level Control Via On Board 10kΩ Potentiometer
- System Status Indicator (Red)
- 8-Conductor Interface Connection
- Label Guard
| Height | 4.5" (114mm) |
| Width | 2.5" (63mm) |
| Depth | 0.24" (6.4mm) |
Other Information
The WPD-MIX42RT is a decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.
- Designed for Remote Activation of Atlas TSD-MIX42RT
- Input Select Slide Switch
- Level Control Via On Board 10kΩ Potentiometer
- System Status Indicator (Red)
- 8-Conductor Interface Connection
- Label Guard
| Height | 4.5" (114mm) |
| Width | 2.5" (63mm) |
| Depth | 0.24" (6.4mm) |
