Description
DESCRIPTION

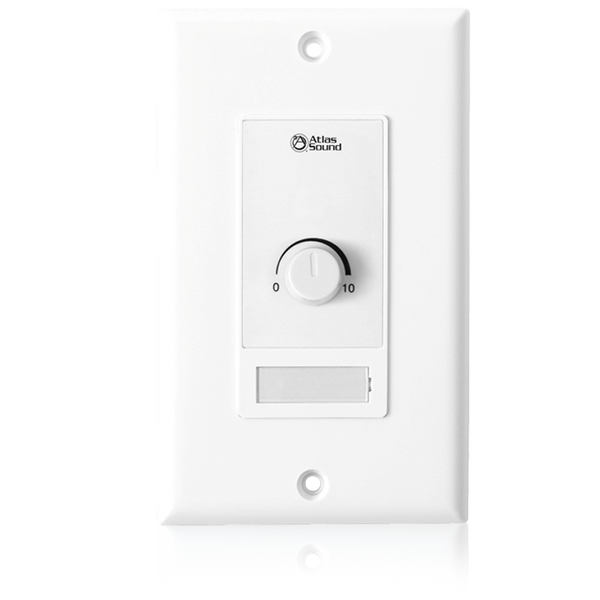

The AtlasIED WPD-VC10K is a decor style wall plate featuring an adjustable 10kΩ potentiometer designed to remotely control the level of connected AtlasIED products like amplifiers. The unit is constructed of durable ABS material and a removable label guard for easy and clean designation of key switch function. The unit can function with VCA 2 or 3 conductor systems and uses a 2 or 3 conductor interface connection designed to work with the included Phoenix style connector. This unit can function in up to 200 feet from the controlled unit using 22-gauge wire.
FEATURES
- White Decor Style Plate, ABS Material
- Fits a Single Gang Electrical Outlet
- 2 or 3 Conductor Interface Connection
- Removable 3 Position Phoenix Style Connector, 5.08mm Pin Spacing
- Removable Label Guard Allows for Clean Identification
SPECIFICATIONS
| Height | 4.5" (114mm) |
| Width | 2.5" (63mm) |
| Depth | 0.24" (6.4mm) |
