Description

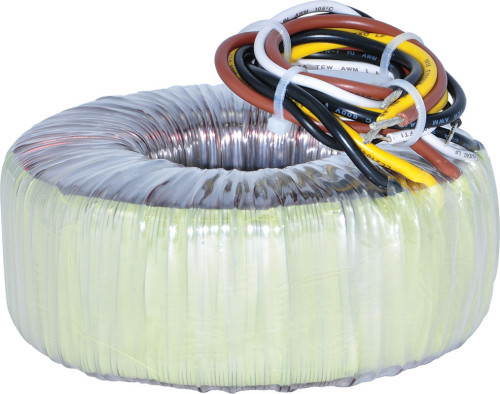

Open Frame Transformer, 24/28VAC @ 300VA, 220VAC
Altronix T2428300220 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
220VAC 50/60 Hz, 1.4A.
Output
24VAC/300VA (14A) or 28VAC/300VA (12.5A) supply current.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA reuirement: 308VA.
