Description

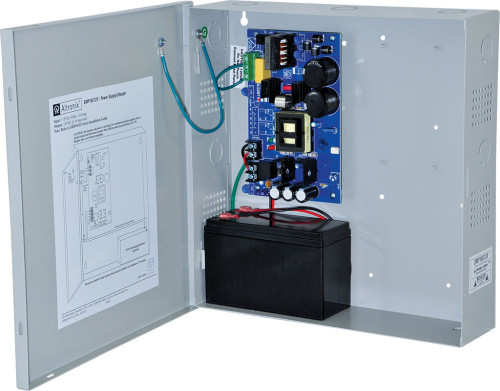

Power Supply Charger, Single Output, 12VDC @ 10A, 220VAC, BC300 Enclosure
SMP10C12X220 power supply/charger converts a 220VAC, 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A.
Output
12VDC output.
10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 61 BTU/Hr.
System AC input VA requirement: 176VA.
