Product Overview

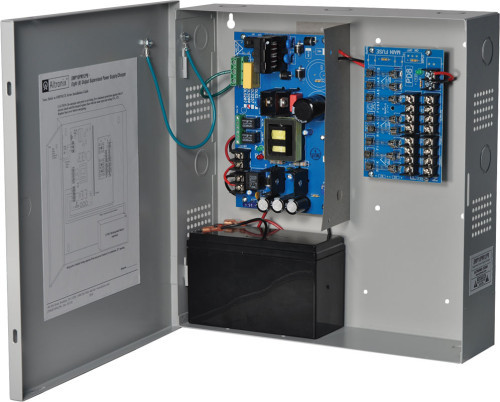

Power Supply Charger, 8 Fused Outputs, 12VDC @ 10A, 220VAC, Supervision, BC300 Enclosure
SMP10PM12P8220 power supply/charger converts a 220VAC 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A.
Output
12VDC output.
10A supply current.
Eight (8) fuse protected outputs.
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Supervision
AC fail supervision (form "C" contacts).
Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 61 BTU/Hr.
System AC input VA requirement: 176VA.
