Product Overview

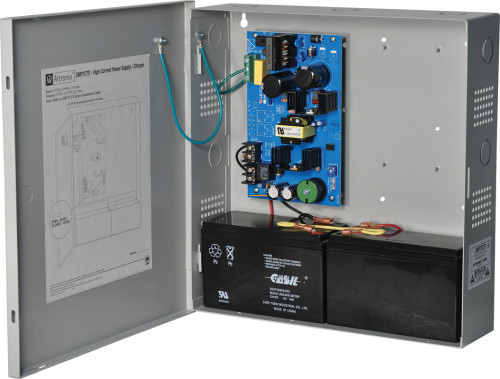

Power Supply Charger, Single Output, 12/24VDC @ 6A, 220VAC, BC300 Enclosure
SMP7CTX220 power supply/charger converts a 220VAC 50/60Hz input into a regulated 12VDC or 24VDC output @ 6A continuous supply current.
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.5A.
Output
12VDC or 24VDC selectable output.
6A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 37 BTU/Hr.
24VDC: 74 BTU/Hr.
System AC input VA requirement: 330VA.
