Product Overview
CCTV DC Power Supply/Charger, 8 Fuse Protected Outputs, 12VDC or 24VDC @ 6A.

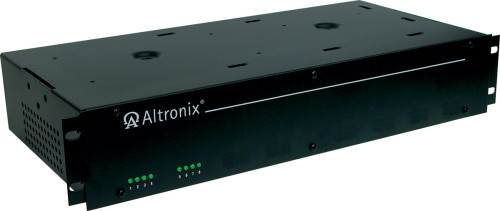

Altronix R1224DC68220 Rack Mount Power Supply provides 12VDC or 24VDC @ 6A via eight (8) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.
Input
220VAC, 50/60Hz, 0.9A.
Output
Eight (8) fuse protected outputs.
12VDC or 24VDC @ 6A (0.75A per device, 3.5A max.)
Outputs are rated @ 3.5A.
Surge suppression.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current 0.7A.
Visual Indicators
Eight (8) power LEDs.
Temperature
Operating temperature: 0° C to 49° C ( 32° F to 120° F).
Storage temperature: -20° C to 70° C ( -4° F to 158° F ).
BTU/Hr. (approx.):
12VDC - 37 BTU/Hr.
24VDC - 75 BTU/Hr.
Relative Humidity: 85% +/-5%
Special Features
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Unit maintains camera synchronization.
Spare fuses provided.
