Product Overview
4-port Fiber Optic Transceivers with Built-In Power Supplies for conventional Fiber or composite Fiber (powered) Cable Application; Class 2

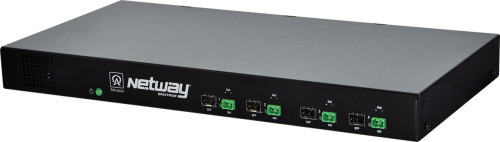

Altronix NetWaySP4P2 Fiber Optic Transceivers provide four (4) 1Gb SFP ports and four (4) power - limited ports for up to 60W per port (240W total power) to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches. NetWaySP4P2 can be used for standard fiber cable applications as well.
Input
115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.
Power
Four (4) 56VDC power-limited outputs up to 60W max. full power per port (240W total power).
Short circuit protection.
Fiber Port
Four (4) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet
Four (4) ports to switch.
Wire type: 4-pair CAT5e and higher.
Connectivity: RJ45, auto-crossover.
Speed: 10/100/1000Mbps.
Distance: up to 100m.
Battery Backup
Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
Temperature
Operating (120W): - 40° C to 50° C ( - 40° F to 122° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
BTU/Hr (approx.): 123 BTU/Hr.
