Description

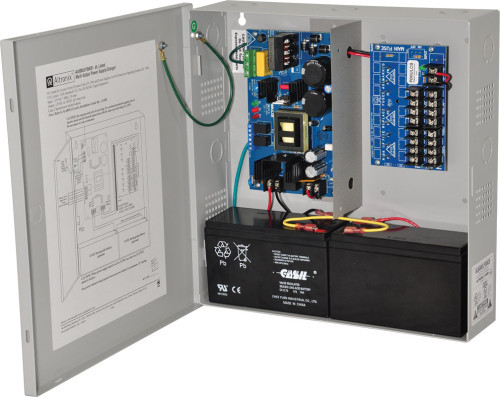

Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC @ 6A, 115VAC, BC300 Enclosure
AL600ULPD8CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC or 24VDC Class 2 Rated power-limited outputs.
Input
Input 115VAC, 60Hz, 3.5A.
Output
12VDC or 24VDC selectable output.
6A continuous supply current.
Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 37 BTU/Hr.
24VDC: 74 BTU/Hr.
System AC input VA requirement: 402.5VA.
