Product Overview

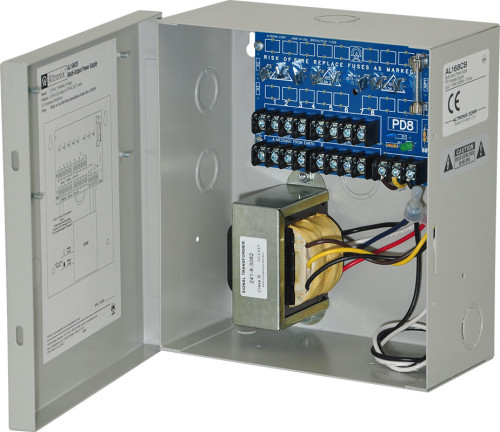

Power Supply, 8 PTC Outputs, 16VAC @ 6A, 115VAC, BC100 Enclosure
AL168CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Input
Input 115VAC, 50/60Hz, 0.9A.
Output
Eight (8) auto-resettable PTC protected outputs.
16VAC or 18VAC output.
16VAC @ 6A (100VA) supply current (0.75A per device, 2.5A max.) or 18VAC @ 5.5A (100VA) supply current (0.6875A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Main fuse rated @ 10A/250V.
Surge suppression.
Visual Indicators
AC power LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
16VAC: 49 BTU/Hr.
18VAC: 51 BTU/Hr.
System AC input VA requirement: 103.5VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
Power Supply, 8 PTC Outputs, 16VAC @ 6A, 115VAC, BC100 Enclosure
AL168CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Input
Input 115VAC, 50/60Hz, 0.9A.
Output
Eight (8) auto-resettable PTC protected outputs.
16VAC or 18VAC output.
16VAC @ 6A (100VA) supply current (0.75A per device, 2.5A max.) or 18VAC @ 5.5A (100VA) supply current (0.6875A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Main fuse rated @ 10A/250V.
Surge suppression.
Visual Indicators
AC power LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
16VAC: 49 BTU/Hr.
18VAC: 51 BTU/Hr.
System AC input VA requirement: 103.5VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
