Description
Power Supply, 16 PTC Outputs, 24VDC @ 16A, 220VAC, 1U

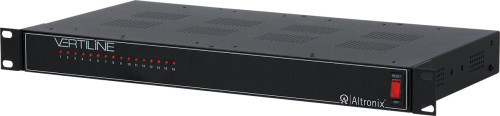

Vertiline63TDV Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 12VDC and eight (8) output configurations.
Input
220VAC 60 Hz, 3A input.
Output
24VDC outputs rated @ 16A total current max. (1.0A per device, 2.5A max.).
Sixteen (16) PTC protected power outputs.
Filtered and electronically regulated.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 197 BTU/Hr.
System AC input VA requirement: 660VA.
