Description

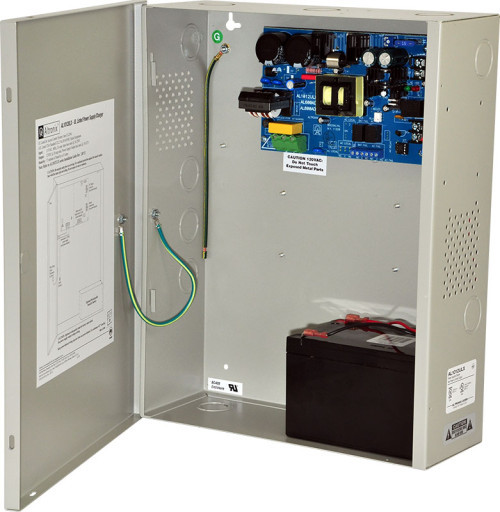

Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, BC400 Enclosure
AL1012ULX is a power supply/charger that converts a 115VAC, 60Hz input into a single 12VDC non-power limited output.
Input
Input 115VAC, 60Hz, 2.6A.
Input fuse rated @ 5A/250V.
Output
12VDC output.
10A continuous supply current.
Output fuse rated @ 15A/32V.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0 to 49° C (32 to 120° F ).
Storage - 20 to 70° C ( - 4 to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 299VA.
