Product Overview

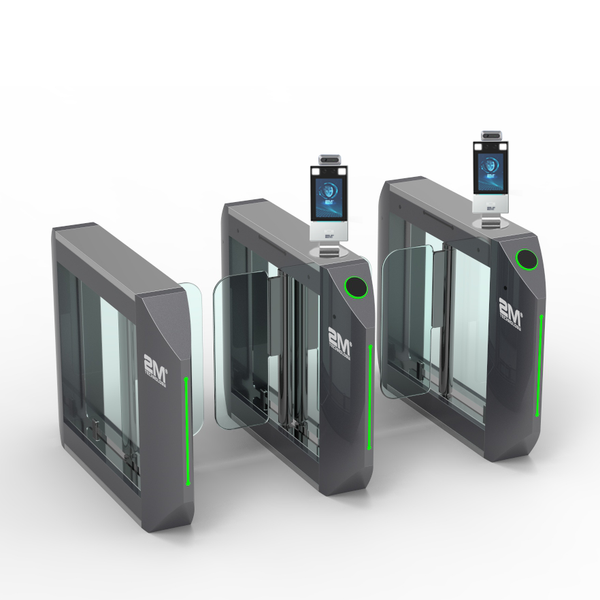

2MGST-6 Face Recognition and Thermal Detection Access Control Swing Turnstile
- Vertical Swing turnstile, Stainless steel 304
Size (L x W x H): 47.24″ x 11.02″ x 39.37″(in) [1200 x 280 x 1000(mm)] - Gross weight: Single: 154.32 lbs [70kg]; double: 209.44 lbs [95kg]
- Unlock time: 0.2s
- Pass rate: 35 people/min
- Pass width: ≤21.65″ in [≤550mm]
- Input: 100V~240V
- Driving voltage: 24V
- Environment: -25~+70
- Power consumption: 30w
- Input: 12V dry contact
- Automatic open when power off
- Supports non-contact detection, warns of people with abnormal body temperature
- Binds body temperature detection and personnel information
- Built-in deep learning dedicated chip, supports local offline recognition,
10,000 face capacity, face whitelist (1:N) - Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for the highest quality image with various complex lighting scenes
- Anti-spoofing protection which uses learning algorithms to effectively prevent photo and video fraud. This system can differentiate between a real person and a video or photograph
| GATE FEATURE | |
| Turnstile Type | Swing turnstile |
| Cabinet Material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Arm Material | Hollowed stainless steel(standard) |
| Acrylic (optional) | |
| Tempered glass (optional) | |
| Finish | Stainless steel satin finish |
| Dimension | 47.24" x 11.02" x 39.37"(in) [1200*280*1000 mm (L x W x H)] |
| Passage Width | ≤21.65" in (≤550 mm) |
| Weight | 154.3 lbs (70 kg) |
| Direction | Single / bidirectional |
| Function | Fail-safe, anti-clamping |
| Power Supply | AC 110–220 V, 50/60 Hz |
| Unlock Time | 0.2s |
| Flow Rate | 35 person/min |
| Working Environment | Indoor and outdoor |
| Motor | DC brush motor (standard) |
| DC brushless motor (optional) | |
| DC servo motor (optional) | |
| FACIAL RECOGNITION | |
| Operation System | Linux |
| Face Recognition Accuracy Rate | >99% |
| Face Recognition Time | 200ms |
| Face Capacity | 10,000 |
| Card Capacity | 100,000 |
| Storage Capacity | 4GB |
| Event Capacity | 30,000 (with images) |
| Measurement Range | 86°F - 113°F (30°C - 45°C) |
| Measurement Accuracy | 0.1°C |
| Measurement Deviation | ≤±0.3°C |
| Measurement Distance | 3.28' ft [1m] |
| Authentication Mode | Face Whitelist: (1:N) |
| Card:(1:N) | |
| Face +Body temperature | |
| Card Type | Mifare 1 Card |
| User Management | Supports user library addition, deletion, update |
| Record Management | Supports local recording and real-time upload |
| Interface | LAN x1, Wiegand Input x1, Wiegand Output x1, RS485 x1, Alarm Input x2, Alarm Output x1, USB2.0 x1, Lock x1, Door Contact x1, Exit Button x1 |
| Power Supply | Input 12V±25% DC |
| Screen | Touch Screen, Size:7 inch, Resolution: 600 x 1024 |
| Camera | Dual Lens, 2MP, 1080P |
| Supplement Light | LED soft light and infrared light |
| Dimensions (L x W x H) | 5.3" x 1.3" x 12" (in) [134 x 33 x 305 (mm)] |
| Working Environment | For access control terminal: -4°F - 149°F [-20°C~+65°C] Relative Humidly<95% (non-condensing) |
| Protection Level | Both terminal and module: IP54 |
| Application Situation | Indoor, No wind |
