Product Overview

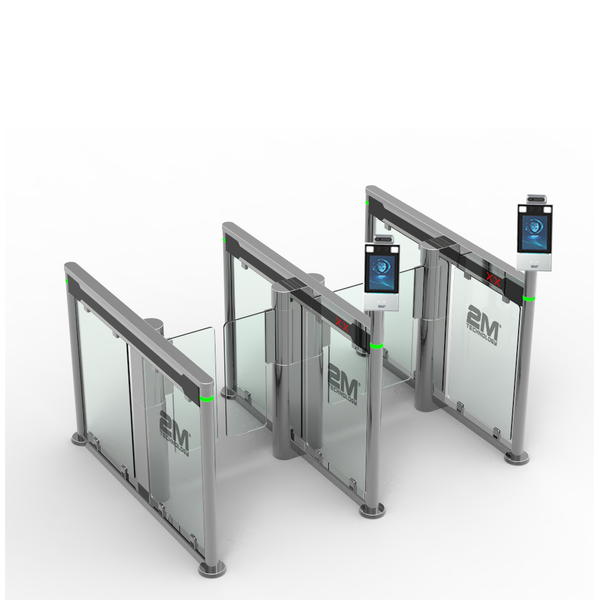

2MGST-1 Face Recognition and Thermal Detection Access Control Swing Turnstile
- Vertical Swing turnstile,Stainless steel 304#
- Size 55.1″ x 10.2″ x 39.4″ (in); Gross weight: 70kg, single: 95kg
- Unlock time: 0.2s ;
- Pass rate: 35 person /min;
- Pass width:≤550mm;
- Input :100V~240V;
- Driving voltage: 24v;
- Environment: -25~+70;
- Power consumption:30w;
- Input: 12v dry contact;
- Automatic open when power off
- Support non-contact detection, support warning people with abnormal body temperature
- Support body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
- Built-in deep learning dedicated chip, supports local offline recognition, 10,000 face capacity, face whitelist (1:N)
- Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Support anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
| GATE FEATURE | |
| Turnstile type | speed gate turnstile |
| Cabinet material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Arm material | Acrylic (optional) |
| Tempered glass (optional) | |
| Finish | Stainless steel satin finish |
| Function | Fail-safe, anti-clamping |
| Dimension | 55.1” x 11.8” x 39.4” (in) |
| Passage width | Customized |
| Direction | Single / bidirectional |
| Power supply | AC110–220 V, 50/60Hz |
| Unlock time | Adjustable |
| Working environment | Indoor |
| Indicator lights | Yes |
| Motor | DC brush motor (standard) |
| DC brushless motor (optional) | |
| DC servo motor (optional) | |
| FACIAL RECOGNITION | |
| Operation System | Linux |
| Face Recognition Accu- racy Rate | >99% |
| Face Recognition Time | 200ms |
| Face Capacity | 10,000 |
| Card Capacity | 100,000 |
| Storage Capacity | 4GB |
| Event Capacity | 30,000 (with images) |
| Measurement Range | 30°C - 45°C |
| Measurement Accuracy | 0.1°C |
| Measurement Deviation | ≤±0.3°C |
| Measurement Distance | 1m |
| Authentication Mode | Face Whitelist: (1:N) |
| Card:(1:N) | |
| Face +Body temperature | |
| Card Type | Mifare 1 Card |
| User Management | Support user library addition, deletion, update |
| Record Management | Support local recording and real-time upload |
| Interface | LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1 |
| Power Supply | Input 12V±25% DC |
| Screen | Touch Screen, Size:7 inch, Resolution: 600×1024 |
| Camera | Dual Lens, 2MP, 1080P |
| Supplement Light | LED soft light and infrared light |
| Dimensions (L×W×H) | 134.0mm×33.0mm×305.0mm |
| Working Environment | For access control terminal: -20°C~+65°C, Relative Humidly<95% (non-condensing) |
| Protection Level | Both terminal and module: IP 54 |
| Application Situation | Indoor, No wind |
