Product Overview
Product Description

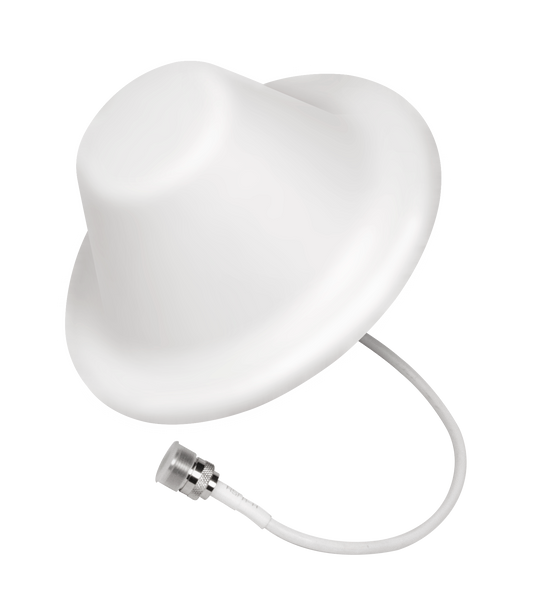

The WilsonPro 4G Dome Ceiling Antenna for indoor residential installation provides wide band coverage cell signal amplifiers on the 698-960/1710-2700 MHz frequency bands. Omnidirectional signal pattern receives and transmits 360 degrees and provides up to 5.1 dB gain. Low profile white dome fits with virtually any decor. Works with 75 Ohm devices on all U.S. and Canada cell carriers. Features built in ground plane and includes mounting hardware. F-Female connector. Dimensions 7.3 inches diameter (185 mm) by 3.3 inches high (85 mm).
Specs
- Model: 304419
- Connectors: F-Female
- Dimensions: 6.38 x 6.38 x 6.38
- Frequency:
- 1710-1880 MHz 4.0
- 2110-2170 MHz 4.0
- 1850-1990 MHz 4.0
- 824-894 MHz 2.0
- 700-800 MHz 2.0
- 880-960 MHz 2.0
- Impedance: 75 Ohm
- Max Gain: 5.1 dB
- Weight: 0.63 lbs.
