Description

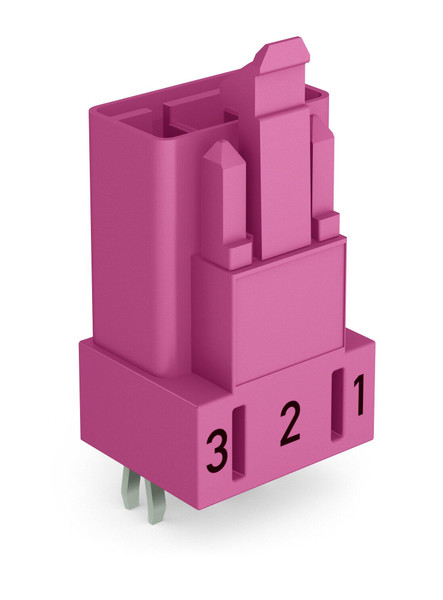

The WAGO 890-893 WINSTA® MINI plug for PCBs features straight, 3-pole, Cod. B, pink.
Specifications
- IEC Approvals — Ratings per: IEC/EN 60664-1
- IEC Approvals — Rated voltage (III / 3): 250V
- IEC Approvals — Rated impulse withstand voltage (III / 3): 4kV
- IEC Approvals — Rated current: 16A
- IEC Approvals — Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Ratings per IEC/EN – Notes — Rated current (note): 13 A for 3-pole load
- Ratings per UL 1977 — Note for the US market: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
- Ratings per UL 1977 — Rated voltage (UL 1977): 600V
- Ratings per UL 1977 — Rated current UL 1977: 14A
- Connection Data — Total number of potentials: 3
- Connection 1 — Number of poles: 3
- Connection 1 — Coding: B
- Pin spacing: 4.4 mm / 0.173 inches
- Width: 14.8 mm / 0.583 inches
- Height: 31.9 mm / 1.256 inches
- Height from the surface: 28.4 mm / 1.118 inches
- Depth: 12.2 mm / 0.48 inches
- Solder pin length: 3.5mm
- Solder pin dimensions: 1 x 0.8 mm
- Drilled hole diameter: 1.3 (+0.1) mm
- Use: Control technology
- Marking: 3 2 1
- Potential Marking: 3 2 1
- Mating force of a plug-in connection: approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection: Locked: > 80 N
- Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles: 200, without resistive load; 100, with resistive load IN = 16 A, tested (1.5 mm²)
- Design: straight
- Contact type (pluggable connector): Male connector/plug
- Connector (connection type): for PCB
- Mismating protection: Yes
- Mating direction to the PCB: 90°
- Locking lever: Yes
- Locking of plug-in connection: Locking lever
- PCB contact: THT
- Solder pin arrangement: 2 in-line solder pins/pole
- Number of solder pins per potential: 2
- Color: pink
- Cover color: gray
- Insulation material (main housing): Polyamide (PA66)
- Flammability class per UL94: V0
- Weight: 3.2g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
- Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
Installation: Supply with WAGO installation instructions and follow the manufacturer’s technical ratings and installation requirements.
Image shown is representative. Refer to the product specifications for the exact configuration.
