WAGO 890-523 Shield connecting plate, 3-pole, for sockets and plugs, silver-colored

$2.53
SKU:
890-523
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.


Manufacturer Information

Wago orders require a $100 combined minimum order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

The WAGO 890-523 shield connecting plate features 3-pole, for sockets and plugs, silver-colored.

Specifications

  • Connection 1 — Number of poles: 3
  • Width: 9.8 mm / 0.386 inches
  • Height: 3.5 mm / 0.138 inches
  • Depth: 43.5 mm / 1.713 inches
  • Suitable: for socket and plug
  • Color: silver-colored
  • Flammability class per UL94: V0
  • Weight: 1.1 g
  • Material: Copper (SE Cu); special tin coating
  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Installation: Supply with WAGO installation instructions and follow the manufacturer’s technical ratings and installation requirements.

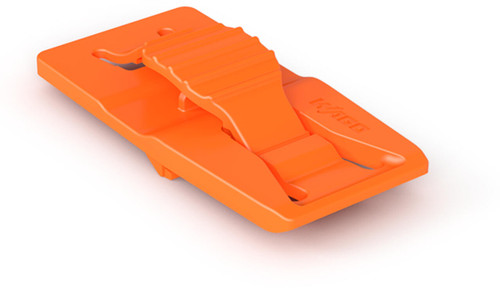

Image shown is representative. Refer to the product specifications for the exact configuration.
