Description
The WAGO 862-2662 4-conductor chassis-mount terminal strip features without ground contact, N-L1, 2-pole, for self-tapping screw 2.9 mm Ø from bellow, with 2x pin, 4 mm², white.
Specifications
- IEC Approvals — Rated voltage (III / 3): 500 V
- IEC Approvals — Rated impulse withstand voltage (III / 3): 6 kV
- IEC Approvals — Rated current: 32 A
- IEC Approvals — Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
- General information — Wiring direction: Side-entry wiring
- Connection Data — Clamping units: 8
- Connection Data — Total number of potentials: 2
- Connection Data — PE function: without PE contact
- Connection 1 — Connection technology: Push-in CAGE CLAMP®
- Connection 1 — Actuation Method: Push-button
- Connection 1 — Connectable conductor materials: Copper
- Connection 1 — Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Connection 1 — Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Connection 1 — Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Connection 1 — Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Connection 1 — Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 20 … 16 AWG
- Connection 1 — Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
- Connection 1 — Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Connection 1 — Strip length: 10 … 11 mm / 0.39 … 0.43 inches
- Connection 1 — Number of poles: 2
- Connection 1 — Wiring direction: Side-entry wiring
- Pin spacing: 12 mm / 0.472 inches
- Width: 24 mm / 0.945 inches
- Height: 27.5 mm / 1.083 inches
- Height from the surface: 22.3 mm / 0.878 inches
- Depth: 35 mm / 1.378 inches
- Marking: N-L1
- Mounting type: Screw mounting
- Mounting type: Chassis-mount
- Color: white
- Insulation material (main housing): Polyamide (PA66)
- Flammability class per UL94: V0
- Halogen-free: Yes
- Weight: 14.1 g

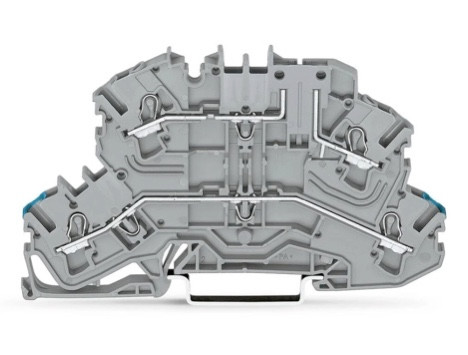

Image shown is representative. Refer to the product specifications for the exact configuration.
