Description

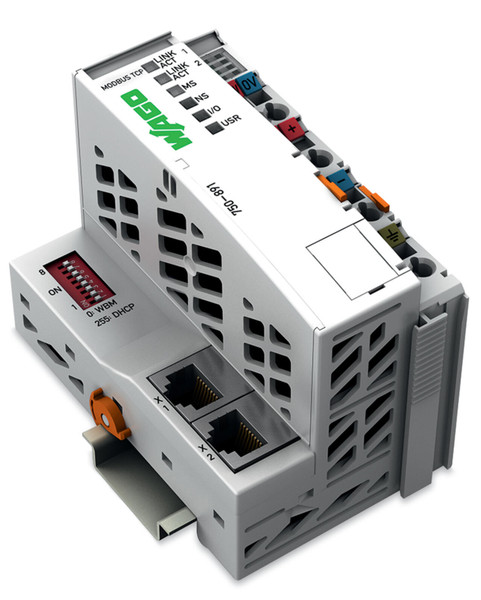

The WAGO 750-891 controller Modbus TCP features 4th Generation, 2 x ETHERNET.
Specifications
- Communications: Modbus (TCP, UDP)
- ETHERNET protocols: HTTP(S); BootP; DHCP; DNS; SNTP; FTP(S); SNMP
- Visualization: Web-Visu
- CPU: 32 bits
- Programming languages per IEC 61131-3: Instruction List (IL); Ladder Diagram (LD); Function Block Diagram (FBD); Continuous Function Chart (CFC); Structured Text (ST); Sequential Function Chart (SFC)
- Programming environment: WAGO-I/O-PRO V2.3
- Configuration options: WAGO-I/O-CHECK; Web-Based Management; CODESYS Library
- Transmission rate: 10/100 Mbit/s
- Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
- Transmission performance: Class D per EN 50173
- Program memory: 4 MB
- Data memory: 4 MB
- Non-volatile software memory: 32 kbyte
- Number of modules per node (max.): 250
- Number of modules without a bus extension (max.): 64
- Input and output process image (fieldbus) max.: 1020 words/1020 words
- Powerfail RTC buffer: 6 days (min.)
- Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
- Supply voltage (system): 24 VDC, SELV/PELV (-25 … +30 %); via wiring interface (CAGE CLAMP® connection); External fuse required: 2 A slow-blow
- Input current (typ.) at nominal load (24 V): 500 mA
- Power supply efficiency (typ.) at nominal load (24 V): 90 %
- Current consumption (system supply): 390 mA
- Total current (system supply): 1,700 mA
- Supply voltage (field): 24 VDC, SELV/PELV (-25 … +30 %); via power jumper contacts (supply via CAGE CLAMP® connection; distribution via spring contact); External fuse required: 10 A slow-blow
- Current carrying capacity (power jumper contacts): 10 A
- Number of outgoing power jumper contacts: 3
- Isolation: 500 V system/field
- Connection Data — Connection technology: communication/fieldbus: Modbus (TCP, UDP): 2 x RJ-45
- Connection Data — Connection technology: system supply: 2 x CAGE CLAMP®
- Connection Data — Connection technology: field supply: 6 x CAGE CLAMP®
- Connection Data — Connectable conductor materials: Copper
- Connection Data — Connection type: System/field supply
- Connection Data — Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Connection Data — Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Connection Data — Strip length: 8 … 9 mm / 0.31 … 0.35 inches
- Connection Data — Connection technology: device configuration: 1 x Male connector; 4-pole
- Width: 61.5 mm / 2.421 inches
- Height: 100 mm / 3.937 inches
- Depth: 71.9 mm / 2.831 inches
- Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
- Mounting type: DIN-35 rail
- Housing material: Polycarbonate; polyamide 6.6
- Weight: 149.9 g
- Conformity marking: CE
- Ambient temperature (operation): 0 … +55 °C
- Ambient temperature (storage): -25 … +85 °C
- Protection type: IP20
- Pollution degree: 2 per IEC 61131-2
- Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
- Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
- Relative humidity (without condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: per EN 61000-6-2, marine applications
- EMC emission of interference: per EN 61000-6-3, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible pollutant concentration H2S at a relative humidity < 75%: 10 ppm
- Permissible pollutant concentration SO 2 at a relative humidity < 75%: 25 ppm
- Pre-contractual Information: Data-Act-750-Series-Controller
