Description
The WAGO 750-483 2-channel analog input features 0 ... 30 VDC, Differential input.
Specifications
- Number of analog inputs: 2
- Number of Channels: 2
- Signal type: Voltage
- Signal type (voltage): 0 … 30 VDC
- Sensor connection: 2 x (2-wire)
- Input filter: Low pass (1st order), fG = 5 kHz
- Signal characteristics: Differential
- Resolution [bit]: 14 Bit
- Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
- Admissible continuous overload: 60 V
- Crosstalk attenuation: 80 dB
- Monotonicity without error code: yes
- Internal resistance: 1000 kΩ
- Measurement error, reference temperature: 25 °C
- Measurement error, deviation max (upper-range value) ≤±: 0.05 %
- Measurement error over entire temperature range: ≤ 0.4 %
- Temperature error max. (upper-range value) ≤±: 0.01 %/K
- Sampling duration: 5 µs
- Sampling delay (channel/channel): 1 µs
- Sampling delay (module): 1 ms
- Sampling repetition time: 1 ms
- Value of the least significant bit (LSB): 1.8 mV
- Supply voltage (system): 5 VDC; via data contacts
- Current consumption (system supply): 80 mA
- Isolation: 500 V system/field or channel/channel
- Indicators: LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
- Connection Data — Connection technology: inputs / outputs: 6 x CAGE CLAMP®
- Connection Data — Connectable conductor materials: Copper
- Connection Data — Connection type: Inputs/Outputs
- Connection Data — Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Connection Data — Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Connection Data — Strip length: 8 … 9 mm / 0.31 … 0.35 inches
- Width: 12 mm / 0.472 inches
- Height: 100 mm / 3.937 inches
- Depth: 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
- Mounting type: DIN-35 rail
- Pluggable connector: fixed
- Color: light gray
- Housing material: Polycarbonate; polyamide 6.6
- Weight: 50.5 g
- Conformity marking: CE
- Ambient temperature (operation): 0 … +55 °C
- Ambient temperature (storage): -40 … +85 °C
- Protection type: IP20
- Pollution degree: 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m / 0 … 6562 ft
- Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
- Relative humidity (without condensation): 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: per EN 61000-6-2, marine applications
- EMC emission of interference: per EN 61000-6-4, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible pollutant concentration H2S at a relative humidity < 75%: 10 ppm
- Permissible pollutant concentration SO 2 at a relative humidity < 75%: 25 ppm

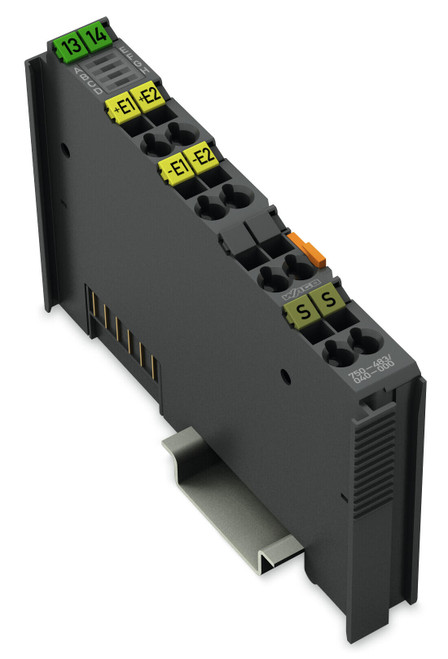

Image shown is representative. Refer to the product specifications for the exact configuration.
