Product Overview

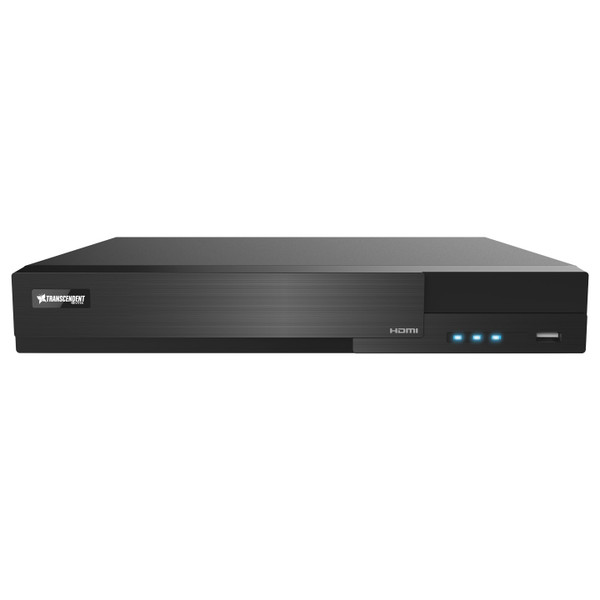

Transcendent Series 4 Channel 8.0 MegaPixel (4K) 5-In-1 HD-TVI / AHD / CVI / CVBS / IP Hybrid Digital Video Recorder
• NDAA COMPLIANT
• 4 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support
• 2 Additional IP Cameras (up to 8MP) can be added for a total of 6 Cameras. IP Video Input: 8MP[4K]@20fps, 5MP [and lower]@30fps
• Analog Channel Recording: 4K@7fps (CH. 1 support), 4K Lite@60fps, 5MP@48fps, 5MP Lite@80fps, 4MP/3MP@60fps, 4MP Lite/1080P/720P/WD1/D1@120fps
• H.265 / H.264 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 4 Ch. Audio In + 1 Ch. Audio Out, 2-Way Audio Takes up 1 input Ch.
• Smart Search – Highlight colors to display recordings in a certain time period: different colors refer to different events
• PTZ Control over Coax (CoC), RS-485
• 4 Alarm inputs / 1 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
• 1 Internal SATA2/SATA3 HDD Slot supporting up to 10TB (1 × 10TB HDD) + 1 x E-SATA
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote Control
• 3 Year Warranty
Other Information
Transcendent Series 4 Channel 8.0 MegaPixel (4K) 5-In-1 HD-TVI / AHD / CVI / CVBS / IP Hybrid Digital Video Recorder
• NDAA COMPLIANT
• 4 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support
• 2 Additional IP Cameras (up to 8MP) can be added for a total of 6 Cameras. IP Video Input: 8MP[4K]@20fps, 5MP [and lower]@30fps
• Analog Channel Recording: 4K@7fps (CH. 1 support), 4K Lite@60fps, 5MP@48fps, 5MP Lite@80fps, 4MP/3MP@60fps, 4MP Lite/1080P/720P/WD1/D1@120fps
• H.265 / H.264 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 4 Ch. Audio In + 1 Ch. Audio Out, 2-Way Audio Takes up 1 input Ch.
• Smart Search – Highlight colors to display recordings in a certain time period: different colors refer to different events
• PTZ Control over Coax (CoC), RS-485
• 4 Alarm inputs / 1 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Free VMS (Video Management Software) Lite and Standard versions available for organized viewing of multiple sites
[For Enterprise version please contact your Vitek Reseller]
• 1 Internal SATA2/SATA3 HDD Slot supporting up to 10TB (1 × 10TB HDD) + 1 x E-SATA
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote Control
• 3 Year Warranty
