Description

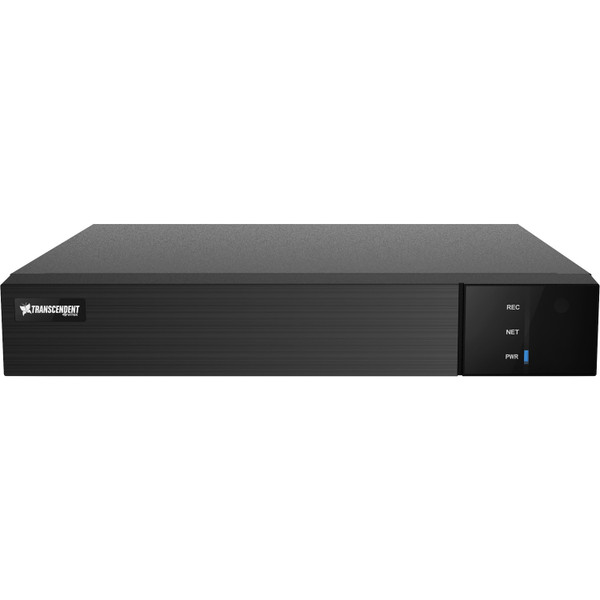

8 Channel 6 MegaPixel Real Time PoE Network Video Recorder
• 8 Channel Stand-alone Real-time IP Network Video Recorder w/ 1080P Hi Res Display
• Video Input: 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
• HDMI & VGA Video Output
HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
• Recording Res: 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
• Frame Rate: 6MP @20fps(NTSC/PAL), 5MP or lower @30fps/25fps(NTSC/PAL)
• H.265S / H.265+ / H.265 / H.264 Video Compression
• 8 Ch. Simultaneous Playback
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• 8 Channel IPC Audio Input (1-Way Audio): HDMI Supported [No Local Output]
• Audio Compression: G.711(U/A)
• Decoding Capability: Live View / Playback — 1Ch. 6MP, 4Ch. 720P
• Video Content Analytics(VCA): Object Missing, Region Intrusion, Tripwire, Exception
• Supports License Plate Recognition
• Plug and Play & Auto Configuration for Leading ONVIF Compliant IP Camera Models
• Multi-mode recording: Manual / Timer / Motion / Sensor / Smart Events
• Alarm Modes: Motion /Sensor Detection, A.I. Event, Temp., Exception Alarm, Mask
• Internal 8-Port PoE Switch
• 1 LAN Port
• USB 2.0 × 2 (Rear)
• 1 Internal SATA2/3 HDD Slot supporting up to 10TB (1 x 10TB HDD)
• Control locally via included USB Mouse or with Optional IR Remote Control
• Supports NAT Function and QR Code Scanning by Mobile Phones
• DHCP, DDNS, PPPoE network protocol
• Power Consumption: <6W (W/out HDD), Supply: DC 48V/2.5A
• 2-Year Warranty
