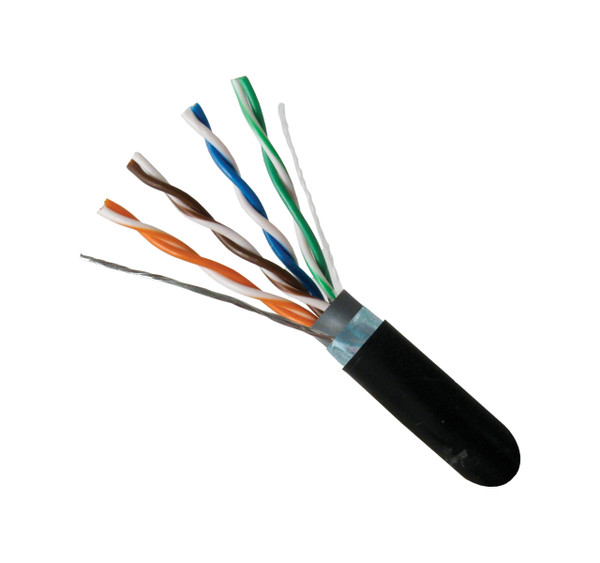

Product Overview
FEATURES
- 350 MHz High-Performance Rating: Supports 10/100/1000BASE-T applications for reliable Gigabit Ethernet connectivity.
- Dual-Jacket Construction: Gray PVC inner jacket (0.19 in. OD) plus black LSZH outer jacket (0.24 in. OD) for maximum protection.
- F/UTP Foil Shielding: Overall aluminum foil shield with tinned copper drain wire provides superior EMI/RFI protection.
- 24 AWG Solid Bare Copper Conductors: Eight solid annealed copper conductors deliver reliable signal transmission over long distances.
- LSZH Outer Jacket: Low Smoke Zero Halogen material minimizes toxic emissions in the event of fire—ideal for environmentally sensitive installations.
- UV-Resistant Design: Black outer jacket withstands prolonged sun exposure without degradation.
- Water-Resistant Construction: Engineered for dry direct burial applications with moisture protection.
- PoE++ Compatible: Supports PoE++ Type 3 (60V) for powering outdoor IP cameras, access points, and other devices.
- Wide Operating Temperature: Performs reliably from -40°F to 167°F (-40°C to 75°C) in extreme conditions.
- CMX Rated: Approved for outdoor use per NEC® requirements.
- Industry Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications; CAN/CSA-C22.2 No. 214 certified, ETL Listed, RoHS compliant.
- Pull Box Packaging: 1000 ft pull box allows easy dispensing and tangle-free installation.
Other Information
Vertical Cable orders over $500 ship for free.
FEATURES
- 350 MHz High-Performance Rating: Supports 10/100/1000BASE-T applications for reliable Gigabit Ethernet connectivity.
- Dual-Jacket Construction: Gray PVC inner jacket (0.19 in. OD) plus black LSZH outer jacket (0.24 in. OD) for maximum protection.
- F/UTP Foil Shielding: Overall aluminum foil shield with tinned copper drain wire provides superior EMI/RFI protection.
- 24 AWG Solid Bare Copper Conductors: Eight solid annealed copper conductors deliver reliable signal transmission over long distances.
- LSZH Outer Jacket: Low Smoke Zero Halogen material minimizes toxic emissions in the event of fire—ideal for environmentally sensitive installations.
- UV-Resistant Design: Black outer jacket withstands prolonged sun exposure without degradation.
- Water-Resistant Construction: Engineered for dry direct burial applications with moisture protection.
- PoE++ Compatible: Supports PoE++ Type 3 (60V) for powering outdoor IP cameras, access points, and other devices.
- Wide Operating Temperature: Performs reliably from -40°F to 167°F (-40°C to 75°C) in extreme conditions.
- CMX Rated: Approved for outdoor use per NEC® requirements.
- Industry Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications; CAN/CSA-C22.2 No. 214 certified, ETL Listed, RoHS compliant.
- Pull Box Packaging: 1000 ft pull box allows easy dispensing and tangle-free installation.
