Tamper resistant, self-locking cover, hidden positive latch permits quick re-entry as well as a secure installation of cable.
UL 94V-0 rated PVC material
Fittings incorporate a minimum 1″ bend radius per TIA/EIA 568-B and 569-A standards
Rubber-based foam tape adhesive with high ultimate bond strength conforms to any surface
Flexible hinge allows the raceway to endure numerous openings without creating discoloration or stress cracking
Junction boxes can be used with this raceway for electrical or data outlets

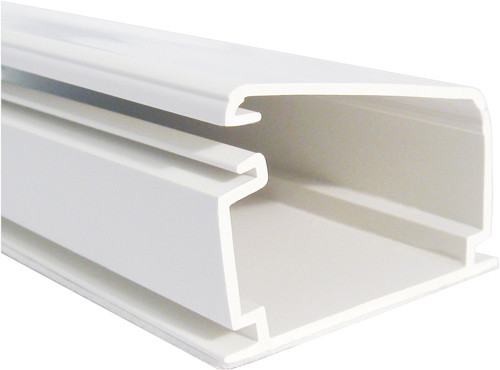

Vertical Cable’s low voltage raceway (TSR) is a one piece, non-metallic, adhesive-back, latching raceway designed to aesthetically organize and route communications wires including high speed UTP cable and fiber optic cable from the telecommunications room to the work area
Available in Ivory and Office White
20 per pack (can be bought individually)
UL Listed
Maximum Fit Capacity Chart
Raceway Size
CAT5E*
CAT6*h
CAT6A*
3/4in
2
2
1
1 1/4in
5>
4
2
1 3/4in
11
8
5
*Estimates based on 4mm (.16in) Diameter CAT5E, 5mm (.20in) Diameter CAT6, 6.5mm (.26in) Diameter CAT6A
