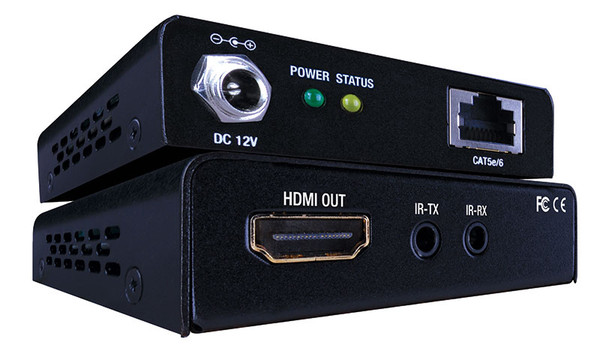

Product Overview
- Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
- Slim and compact design
- Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
- Wideband IR signal from 20KHz to 60KHz
- Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
- Features Auto EDID and EQ Management for plug and play installation
- Works with HDMI and HDCP compliant devices
- HDCP 2.0 compliant
- Pure uncompressed 7.1ch digital audio
- Supports DTS-HD and Dolby TrueHD high bit rate audio
- Allows cascading to create a larger distribution system
- Fully compatible with any Evolution by Vanco product
- Dimensions: 2.7 inches (68.58mm) W x .7 inches (17.78mm) H x 3.25 inches (82.55mm) D
- Patent No. 9,710,038 B1
Package Contents:
- EVEX2006 (TX & RX)
- (2) IR Blasters (TX)
- (2) IR Receivers (RX)
- (1) DC 12V in line power supply
- Product Manual
Other Information
Vanco orders are subject to a $150 combined order minimum. Please contact us about possible orders under this amount. Vanco orders over $1500 ship for free.
