Description

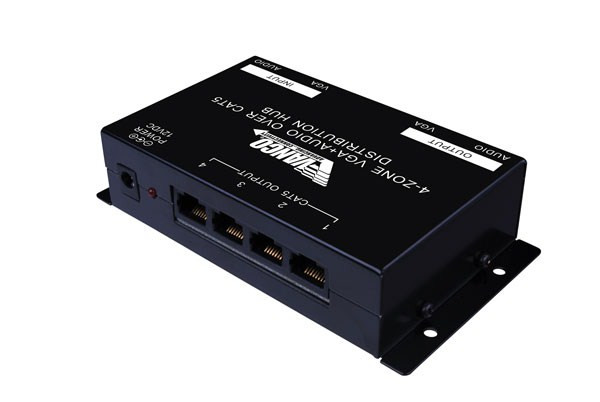

Allows VGA and Audio Signals to be Transmitted from the Distribution Hub to up to 4 receivers over single Cat5e or Cat6 cables
- Transmission Range up to 1000 ft.
- 350 MHz signal transmission bandwidth
- Includes distribution hub and one receiver
- Additional VGA + Audio over Cat5e Receivers can be purchased separately – Vanco Part Number 280548
- Output allows for one display with audio at origin location and up to 4 additional display device with audio in a remote location
- Receiver features Dual VGA outputs and a single Cat5e/Cat6 output for cascading to up to 3 additional units
- Receiver features adjustable EQ and GAIN controls
- Supports computer resolutions UXGA (1600×1200) SXGA (1280×1024)- XGA (1024×768)- SVGA (800×600) and VGA (640×480)
- Supports up to 100 meters (330 ft) with resolution 1200×1600
- Supports up to 120 meters (396 ft) with resolution 1280×1024
- Supports up to 180 meters (594 ft) with resolution 1024×768
- Supports up to 200 meters (660 ft) with resolution 800×600
- Supports up to 300 meters (1000 ft) with resolution 640×480
- Power Supply: (2) 12V DC- UL Listed
- Distribution Hub Dimensions: 5.31″ W x 1.25″H x 3.13″D
- Receiver Dimensions: 5.31″ W x 1.25″H x 3.13″D
