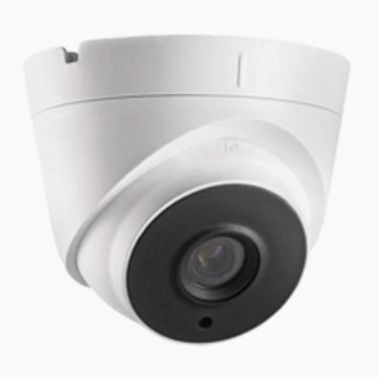

Product Overview

FEATURES

5MP High Performance CMOS
2560 X 1944 resolution
2.8mm Fixed Focal Lens
EXIR 2.0, Smart IR, up to 40m IR distance
OSD Menu, 2D-DNR, DWDR
4 in 1 Video Output (switchable TVI/AHD/CVI/CVBS)
IP67
Up the Coax

SPECIFICATIONS

Image Sensor: 5MP CMOS Image Sensor

Resolution: 2592 (H) x 1944 (V)

Min. Illumination: Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/25s to 1/50,000s NTSC: 1/30s to 1/50,000s

Lens: 2.8/3.6/6.0mm

Horizontal Field of View: 85.5º (2.8mm), 80.1º (3.6mm), 57.1º (6mm)

Lens Mount: M12

Day & Night: IR cut filter

Angle Adjustment: Pan: 0º to 360º; Tilt: 0º to 75º, Rotate: 0º to 360º

Synchronization: Internal synchronization

Frame Rate: PAL: 5MP@20fps, 4MP@25fps, 1080p@25fps, NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps

Video Output: 1 HD analog output

White Balance: ATW/MWB

BLC: Support

Functions: Brightness, Sharpness, Digital Noise Reduction, Mirror, Bad pixel correction, Smart IR

Operating Conditions: -40° to 60°C (-40°F to 140°F)/ Humidity: 90% or less (non-condensing)

IR Distance: Up to 40m

Protection Level: IP67

Material: Enclosure: Plastic / Main Body: Metal

Power Supply: 12VDC±25%

Communication: Up the coax

Dimensions: Φ110mm x 93.2mm (Φ4.33” x 3.67”)

Weight: 350g (0.77 lb.)
