16.6 millisecond automatic transfer between line and battery power supports UPS protection for equipment compatible with a one cycle transfer time
2000W continuous AC output in inverter mode, 4000W continuous AC output in AC mode
DoubleBoost output supports momentary startup loads of up to 200% of the continuous rating for up to 10 seconds - OverPower output supports duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions
3-stage selectable 15/60 Amp battery charger with adjustable settings for wet/gel/AGM battery types
2 NEMA 5-15R GFCI protected outlets pass 120V line power or inverter output through to connected equipment
3 position operating mode switch supports “AUTO” mode to enable automatic transfer between DC and AC modes, CHARGE ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings
Set of 6 front panel LED's display continuous status
Set of 4 dip switches support wet/gel/AGM battery charging profiles, adjustable 135/145V high voltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts
Set of 4 additional dip switches support 4 levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings
Resettable 25A charger AC input breaker and settable 20A AC output breaker and automatic 2-speed cooling fan
Automatic overload and thermal (overheating) shutoff
Front panel remote control connector enables remote off/on switching with included APSRM4 remote
Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change
Includes a battery temperature sensor with 20-ft. (6.09 m) cable to prolong battery life by adjusting the charge level based on battery temperature
Package Includes

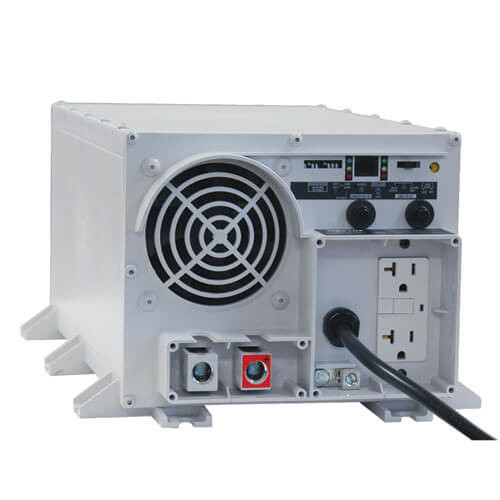

UT2012UL Inverter/Charger
APSRM4 Remote
Remote battery temperature sensor cable
Instruction manual with warranty information
Specifications
OVERVIEW
UPC Code
037332123565
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
DC INPUT: Requires 12VDC input source capable of delivering 192A for the required Duration (when used at full continuous capacity- DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120VAC recommended.
Input Connection Type
DC INPUT: set of two (2) DC bolt-down terminals. AC INPUT: NEMA 5-15R GFCI input plug
Input Cord Length Details
DC INPUT: User supplies cabling. 6 gauge or larger (see manual) AC INPUT: attached 6ft. AC line cord with plug
Voltage Compatibility (VAC)
120
Voltage Compatibility (VDC)
12
OUTPUT
Frequency Compatibility
60 Hz
Pure Sine Wave Output
No
Output (Watts)
2000
Nominal Output Voltage(s) Supported
120V
Output Receptacles
(2) 5-15R
Continuous Output Capacity (Watts)
2000
Output Nominal Voltage
120V
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line Source. Inverter Power (AC) Maintains PWM sine wave output voltage of 120 VAC (+/- 5%)
Output Frequency Regulation
60 Hz (+/- 0.3Hz)
Overload Protection
Includes 25A input breaker dedicated to the charging system and 20A output breaker for AC output loads
Outlet Details
2 NEMA 5-15R GFCI protected outlets
BATTERY
Expandable Battery Runtime
Runtime is expandable with any number of user supplied wet or gel or AGM type batteries
Expandable Runtime
Yes
DC System Voltage (VDC)
12
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
Battery Charge
15A / 60A (selectable)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LEDs
Set of (6) LEDs offer continuous status information on load percentage ( 6 levels reported) and battery charge level (7 levels reported) See manual for sequences
Switches
3 position on / off remote switch enables simple on / off power control plus "auto/ remote"
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating
600
PHYSICAL
Cooling Method
Multi-speed fan
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Material of Construction
Polycarbonate
Receptacle Color
White
Shipping Dimensions (hwd / in.)
12.80 x 14.40 x 19.60
Shipping Weight (lbs.)
46.20
Unit Dimensions (hwd / in.)
7.25 x 8.5 x 16.25
Unit Weight (lbs.)
40.6
ENVIRONMENTAL
Relative Humidity
0-95% non-condensing
LINE / BATTERY TRANSFER
Transfer Time (Line Power to Battery Mode)
16.6 milliseconds (typical -compatible with many computers, servers and networking equipment -verify transfer time compatibility loads for UPS applications)
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter / charger switches to battery mode as line voltage drops to 75V (user adjustable to 85,95,105 -see manual)
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter / charger switches to battery mode as line voltages increases 135V (user adjustable to 145 -see manual)
