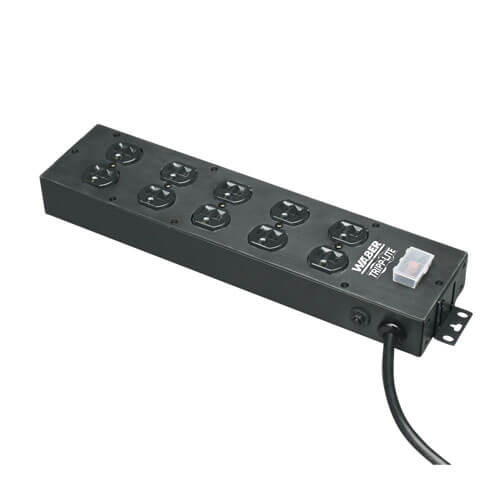

The Waber-by-Tripp Lite UL800CB-15 Power Strip offers reliable, convenient, cost effective method of power distribution for appliances, power tools, lighting and other electrical equipment. Includes 10 NEMA 5-15R output receptacles arranged with traditional wall socket spacing to accept large equipment plugs with minimal outlet blockage. Includes 15-ft. (4.57 m) AC line cord and flat sheet metal flanges for installation in a wide variety of applications. Corded, multi-outlet strip reduces cabling clutter and enables the connection of multiple electrical devices to a single AC wall socket. Unfiltered electrical pass-through makes UL800CB-15 ideal for distributing alternate waveform UPS or generator power. Features rugged all-metal housing, lighted power switch, 15 amp resettable circuit breaker and attractive blue/gray color scheme. PLUG/OUTLETS - Input: NEMA 5-15P/Output: 10 NEMA 5-15R ELECTRICAL - 120VAC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle) FORMAT - Corded power distribution strip
Features
Multi-outlet power strip offers reliable, convenient, cost effective method of power distribution for appliances, power tools, lighting and other electrical equipment.
Includes 10 NEMA 5-15R output receptacles arranged with traditional wall socket spacing to accept large equipment plugs with minimal outlet blockage
Lighted on/off switch controls power to all outlets
Keyhole mounting tabs for installation in a wide variety of applications
UL Recognized Component, Tested to UL1363 (Power Tap), cUL (Canada)
15 amp power handling capacity with circuit breaker
15-ft. (4.57 m) AC line cord
Package Includes
UL800CB-15 Power Strip
Warranty information
Instruction manual
Specifications
OVERVIEW
UPC Code
037332117724
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
15A 120V
Input Cord Gauge Type
14 gauge; SJT
Voltage Compatibility (VAC)
120
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(10) 5-15R
Circuit Breaker (amps)
15
Transformer Accommodation
(5) Yes
Outlet Orientation
Two rows of 5 outlets
USER INTERFACE, ALERTS & CONTROLS
Switches
Lighted 2 position switch controls power to all outlets
PHYSICAL
Material of Construction
Metal
Color
Black
Power Cord Color
Black
Housing Color
Blue; Gray
Included Mounting Accessories
Keyhole slots on removable mounting brackets
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
Distance between end tabs = 462.30mm
Outlets Measurement (Center to Center)
Distance between horizontal outlets = 71.45mm; Distance between vertical outlets = 38.90mm
Receptacle Color
Black
Shipping Dimensions (hwd / in.)
2.50 x 9.00 x 20.25
Shipping Weight (lbs.)
5.15
Unit Dimensions (hwd / in.)
17.5 x 4 x 1.75
Mounting Details
Includes flanges
STANDARDS & COMPLIANCE
Canada
cUL
UL1363 (Power Tap)
UL Recognized Component, Tested to UL1363 (Power Tap)
