Product Overview
Features

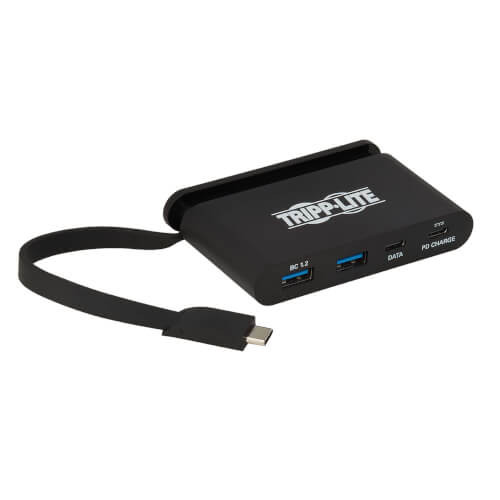

USB-C 3.1 Hub Connects 4 USB Peripherals to Your MacBook or Chromebook
This USB-C hub allows you to connect up to four USB peripherals to your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC. Not only can you expand the potential of your device by connecting USB peripherals, such as an external hard drive, flash drive, power meter and printer, but you can also power and fast-charge the device through the USB-C Power Delivery (PD) 3.0 port. Note: Host must support USB OTG (On-the-Go).
PD Charging Port Charges the Connected Device via AC Wall Charger
The USB-C PD charging port provides power output up to 5 amps (100 watts), which is more than sufficient for charging and powering the connected device, such as a MacBook or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port to enjoy lightning-fast data transfer speeds up to 10 Gbps. As part of PD 3.0, this unit will support Fast Role Swap. This helps prevent any type of data loss that could possibly occur when the power unexpectedly turns off.
Note: USB-C PD port does not support Quick Charge (QC).
Connects USB Peripherals and Transfers Data at Lightning-Fast USB 3.1 Gen 2 Speeds
In addition to accepting USB peripherals, the dual USB-A 3.0 ports provide up to 0.9 amps each for charging and powering mobile devices. The USB-C data port provides up to 1.5A for charging devices. All four USB ports transfer data at speeds up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. The USB ports are backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.
Self-Storing USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. The six-inch cable wraps into the adapter when not in use, making the unit easy to carry in a briefcase or laptop bag for connecting on the go.
Ready to Use Right Out of the Package
The plug-and-play USB Type-C hub is specifically designed for use with the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power.
Typical Applications
- Charge and power a MacBook, Chromebook, tablet or other USB-C or Thunderbolt 3 device
- Connect up to 4 USB peripherals, such as an external hard drive, flash drive, power meter and printer
Package Includes
- U460-T04-2A2C-2 USB 3.1 C Hub, 10 Gbps, Black
- Owner’s manual
System Requirements
- Device with USB-C or Thunderbolt 3 port (USB 3.1 port needed to achieve USB 3.1 speeds)
Specifications
OVERVIEW
| UPC Code | 037332236449 |
| Product Type | Hub |
| Technology | USB 2.0 (High Speed) |
| Host Connector | USB C (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (2) USB A (FEMALE); (2) USB C (FEMALE) |
| Data Ports Details | (2) USB-A - USB 3.2 Gen 2 (10 Gbps); (2) USB-C - USB 3.2 Gen 2 (10 Gbps) |
INPUT
| Bus Powered | Yes |
| Product Length (in.) | 6 |
| Product Length (cm.) | 15.24 |
| Product Length (ft.) | 0.5 |
| Product Length (m.) | 0.15 |
BATTERY
| Battery Charging (5V/1.5A Port) | No |
POWER
| USB Power Delivery (PD) Charging Support | Yes |
| USB Power Delivery (PD) Charging Specification | 3.0 |
CHARGING
| Total Charging Watts | 100 |
| Charging Ports | USB-C: 100W (20V 5A) Power Delivery (PD 3.0) |
| Charging Ports / Amps | (2) 0.9A; 1.5A; 5A |
PHYSICAL
| Color | Black |
| Material of Construction | Plastic |
| Cable Jacket Rating | VW-1 |
| Shipping Dimensions (hwd / in.) | 0.00 x 0.00 x 0.00 |
| Shipping Weight (lbs.) | 0.00 |
| Unit Dimensions (hwd / in.) | 0.55 x 3 x 1.7 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.07 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 113 °F (0 to 45 °C) |
| Storage Temperature Range | 23 to 158 °F (-5 to 70 °C) |
| Operating Humidity Range | 5% ~ 85% |
| Storage Humidity Range | 5% ~ 90% |
| Power Provided to Connected Device(s) | USB-A Port: 900mA; USB-C: 1.5A; USB-C PD 3.0 Charging Port: 2A |
CONNECTIONS
| Ports | 4 |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | (2) USB 3.0 A (FEMALE) |
| Side B - Connector 2 | (2) USB C (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.1 Gen 2 (up to 10 Gbps) |
| Driver Required | No |
| UASP Support | Yes |
| Auto MDIX Support | No |
| Full Duplex Support | No |
| Suspend Mode Support | No |
| Remote Wakeup Support | No |
STANDARDS & COMPLIANCE
| Certifications | RoHS, CE, FCC |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
