Product Overview
Features

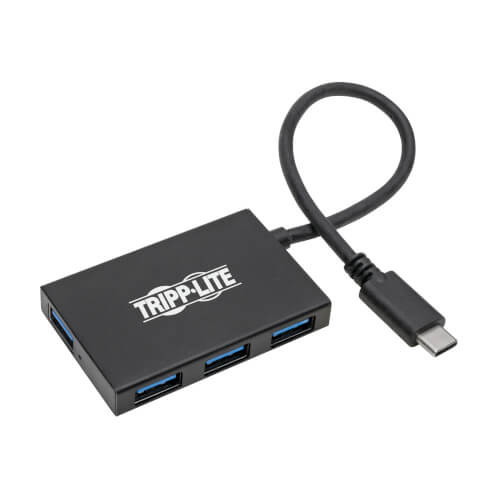

USB-C 3.1 Hub Connects 4 USB Peripherals to Your MacBook or Chromebook
This USB-C hub allows you to connect up to four USB peripherals to your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC. You can expand the potential of your device by connecting USB peripherals that can help you do your job faster, easier and better, such as an external hard drive, keyboard/mouse, power meter and printer.
Connects USB Peripherals and Transfers Data at Fast USB 3.1 Gen 1 Speeds
All four USB ports transfer data at speeds up to 5 Gbps, which is 10 times faster than USB 2.0. The USB ports are backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.
Note: Host must support USB OTG (On-the-Go)
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB Type-C hub is specifically designed for use with the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power. The lightweight aluminum case fits easily into a pocket, briefcase or laptop bag for connecting on the go.
Typical Applications
- Connect up to 4 USB peripherals, such as an external hard drive, MP3 player, power meter and printer
- Transfer files quickly to and from a USB thumb drive
- Attach a USB headset/microphone for recording your podcast
- Write a report using a USB keyboard with your tablet or Android smartphone
- Download photos from a digital camera
Package Includes
- U460-004-4A-AL USB 3.1 C Hub, 5 Gbps, Aluminum Housing
System Requirements
- Tablet, laptop, Chromebook, MacBook, smartphone, PC or other device with USB-C or Thunderbolt 3 port
Specifications
OVERVIEW
| UPC Code | 037332214010 |
| Product Type | Hub |
| Host Connector | USB C (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (4) USB A (FEMALE) |
| Data Ports Details | (4) USB-A - USB 3.2 Gen 1 (5 Gbps) |
INPUT
| Bus Powered | Yes |
| Product Length (in.) | 8.5 |
| Product Length (cm.) | 21.6 |
| Product Length (ft.) | 0.71 |
| Product Length (m.) | 0.22 |
BATTERY
| Battery Charging (5V/1.5A Port) | No |
POWER
| USB Power Delivery (PD) Charging Support | No |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue - Connection |
CHARGING
| Charging Ports / Amps | (4) 1.5A |
PHYSICAL
| Color | Black |
| Material of Construction | Aluminum |
| Cable Jacket Rating | VW-1 |
| Shipping Dimensions (hwd / in.) | 0.00 x 0.00 x 0.00 |
| Shipping Weight (lbs.) | 0.00 |
| Unit Dimensions (hwd / in.) | 1.6 x 2.4 x 0.4 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.09 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Storage Temperature Range | 14 to 167 F (-10 to 75 C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
| BTUs | 2.4 BTU/Hr |
| Power Consumption (Watts) | 0.7 |
CONNECTIONS
| Ports | 4 |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | (4) USB 3.0 A (FEMALE) |
| Side B - Connector 2 | MICRO-USB B (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
