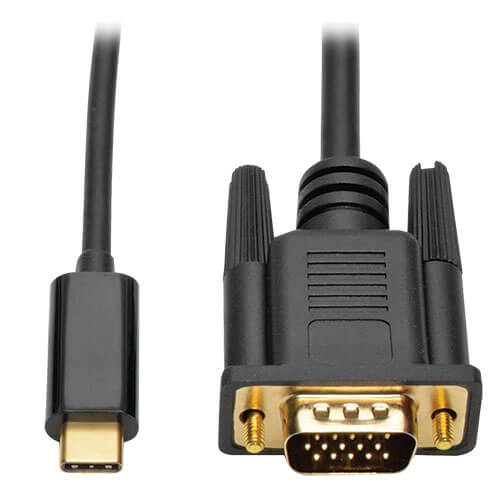

Tripp-Lite U444-006-V 6Ft USB-C to VGA Adapter Converter Cable

MSRP: $54.36
$49.99
(You save $4.37 )
SKU:
U444-006-V
Shipping:
Calculated at Checkout
Tripp-Lite U444-006-V 6Ft USB-C to VGA Adapter Converter Cable

Product Overview

Features

Connects a VGA Display to Your USB-C or Thunderbolt 3 Device
  • Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
  • Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

Common Applications
  • Extends video from your primary display to another
  • Duplicates the same video on 2 displays
  • Converts a secondary display to your primary display

Crystal-Clear 1080p Video
  • Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
  • Supports 36-bit Deep Color (12 bits per channel)

Reversible USB-C Connector
  • Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Premium Construction
  • Gold-plated connectors and contacts for maximum conductivity and minimum data loss
  • Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
  • Integral strain relief helps cable and connectors move freely without stress or cracking
  • Durable PVC jacket designed to last a long time

Ready for Instant Use
  • Plug-and-play operation with no software, drivers or external power required
  • 6 ft. length easy to manage in crowded environments
  • Backward compatible with non-1080p displays

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with VGA input

Package Includes

  • U444-006-V USB 3.1 Gen 1 USB-C to VGA Adapter Cable (M/M), 6 ft.
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332202512
Product Type Passive
Technology VGA/SVGA
VIDEO
Max Supported Video Resolution VGA: 1920 X 1200 (1080P) @ 60HZ
INPUT
Bus Powered   Yes
Product Length (in.) 72
Product Length (cm.) 182.88
Product Length (ft.) 6
Product Length (m.) 1.83
BATTERY
Battery Charging (5V/1.5A Port) No
PHYSICAL
Color Black
Material of Construction PVC, ABS
Cable Jacket Rating VW-1
Cable Length (ft.) 6
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.23
Unit Packaging Type Polybag
Unit Weight (lbs.) 0.22
ENVIRONMENTAL
Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
BTUs   2.1 BTU/Hr
Power Consumption (Watts) 0.6
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 USB C (MALE)
Side B - Connector 1 HD15 (MALE)
Connector Plating Gold
FEATURES & SPECIFICATIONS
USB Specification USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required No
UASP Support   No
Auto MDIX Support   No
Full Duplex Support   No
Suspend Mode Support   No
Remote Wakeup Support No
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) 3-year limited warranty
