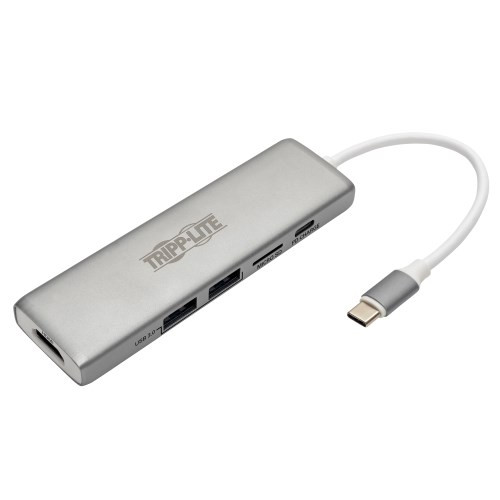

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation
This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and 4K video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device and more—all at the same time.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio
The HDMI port supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. A DVI display may also be connected using an HDMI to DVI adapter (sold separately). HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications.
USB-A Ports Connect Keyboards, Thumb Drives and Other USB Peripherals
Two USB 3.2 Gen 1 ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support fast data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. Note: Host must support USB OTG (On-the-Go).
PD 2.0 Charging Port Charges Connected Device via AC Wall Charger
The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an Android smartphone or Chromebook. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC).
Allows External Memory Access
A memory card slot supports Micro SD cards for transferring data to and from your connected computer, laptop or tablet.
Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. Its compact footprint fits easily into your desk space without taking up much valuable room.
Typical Applications
- Play video from your laptop or PC on an HDMI display, such as an HDTV or projector
- Transfer data to and from a USB flash drive or Micro SD memory card
- Charge your notebook or laptop by connecting its wall charger to the USB-C PD Charging port
- Connect a microphone/headset to record a podcast or listen to music
Package Includes
- U442-DOCK10-S USB-C Dock, Silver
- Owner’s manual
System Requirements
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with HDMI or DVI* input
- Not for use with Thunderbolt monitors
*Requires adapter (sold separately)
NEED HELP FINDING
THE PERFECT DOCK?
Product Advisor can recommend a dock with all the features you'll need to turn your laptop into a powerful workstation.
Specifications
OVERVIEW
| UPC Code | 037332213365 |
| Product Type | Docking Station |
| Technology | HDMI |
| Host Connector | USB C (MALE) |
VIDEO
| Number of Monitors Supported | 1 |
| Video Ports | HDMI (FEMALE) |
| Video Ports Details | HDMI 2.0; HDCP 2.2 |
| Resolutions Supported | HDMI: 4K 30Hz (3840 x 2160) |
| Max Supported Video Resolution | HDMI: 3840 X 2160 (4K X 2K) @ 30HZ |
| Extended Mode | No |
| Mirror Mode | No |
| Max Supported Color Depth | 24-bit True Color |
| Chroma Sub Sampling | 4:4:4 |
DATA
| Data Ports | (2) USB A (FEMALE) |
| Data Ports Details | (2) USB-A - USB 3.2 Gen 1 (5 Gbps) |
STORAGE
| Card Slots | MICRO SD (FEMALE) |
| Card Slots Details | SD 3.0 |
INPUT
| Built-In Cable Length (ft.) | 0.49 |
| Built-In Cable Length (in.) | 5.9 |
| Bus Powered | Yes |
| Product Length (in.) | 12 |
| Product Length (cm.) | 30.48 |
| Product Length (ft.) | 1 |
| Product Length (m.) | 0.3 |
BATTERY
| Battery Charging (5V/1.5A Port) | No |
POWER
| USB Power Delivery (PD) Charging Support | Yes |
| USB Power Delivery (PD) Charging Specification | 2.0 |
CHARGING
| Total Charging Watts | 60 |
| Charging Ports | USB-C: 60W (20V 3A) Power Delivery (PD 2.0) |
| Charging Ports / Amps | (2) 0.9A; 3A |
PHYSICAL
| Color | Silver |
| Material of Construction | Aluminium |
| Cable Jacket Rating | VW-1 |
| Shipping Dimensions (hwd / in.) | 0.80 x 5.70 x 3.20 |
| Shipping Weight (lbs.) | 0.20 |
| Unit Dimensions (hwd / in.) | 0.51 x 4.5 x 1.3 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.15 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 131 F (0 to 55 C) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
| BTUs | 6.1 BTU/Hr |
| Power Consumption (Watts) | 1.80 |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB A), Up to 20V 3A (60W) Input (USB C) |
CONNECTIONS
| Ports | 5 |
| Dock Connectors | 2 x USB3.0, MICRO SD, HDMI, USB-C CHARGING |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 2 | (2) USB 3.0 A (FEMALE) |
| Side B - Connector 3 | MICRO SD (FEMALE) |
| Side B - Connector 4 | USB C (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| HDCP Specification | 2.2 |
| USB Hub Ports | Yes |
| Number of USB Hub Ports | 2 |
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
| Full Duplex Support | Yes |
| Suspend Mode Support | Yes |
| SD Card Specification | Micro SD |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
