Product Overview
Features

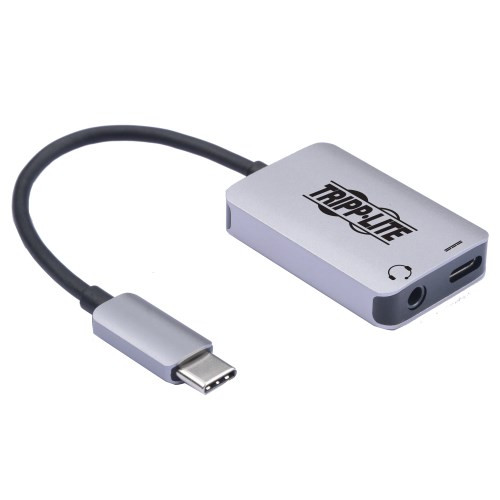

3.5 mm Audio Adapter Connects to Your Computer’s USB-C Port
This USB Type-C to Stereo Audio Adapter allows you to connect a stereo microphone, earbuds, headphones or speakers to your MacBook Pro, Windows laptop, Chromebook or other device with a USB-C port. Not only does this adapter allow you to bypass a defective sound card or 3.5 mm headphone jack, it also lets you connect to a device that offers only USB-C ports. The adapter converts digital high-resolution audio to analog to maintain a crisp, lively sound.
PD Charging Port Charges Connected Device via AC Wall Charger
The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging the connected source device more quickly than other chargers. Just connect the device’s AC wall charger to the USB-C PD port. By connecting both the USB-C PD and 3.5 mm audio ports at the same time, you can listen to your tunes or record a podcast without using precious battery power.
Built-In USB-C Cable Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C port in either direction for a fumble-free connection every time.
Ready to Use Right Out of the Package
The plug-and-play audio adapter requires no software or external power. The compact aluminum housing fits easily into a pocket, briefcase or laptop bag for connecting on the go.
System Requirements
- Source device with USB-C port that supports USB digital audio
- Microphone, headphones, earbuds and/or speakers with 3.5 mm plug
- Windows 10, Mac OS 8.6 or above, Linux, Chrome OS or Android operating system
Package Includes
- U437-001-C USB-C to Stereo Audio Adapter, Silver
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332253903 |
| Technology | Stereo Audio |
AUDIO
| Audio Specification | Digital Hi-Res Audio |
INPUT
| Built-In Cable Length (ft.) | 0.295 |
| Built-In Cable Length (in.) | 3.54 |
| Bus Powered | Yes |
| Product Length (in.) | 6.20 |
| Product Length (cm.) | 15.75 |
| Product Length (ft.) | 0.516 |
| Product Length (m.) | 0.157 |
BATTERY
| Battery Charging (5V/1.5A Port) | Yes |
POWER
| USB Power Delivery (PD) Charging Support | Yes |
| USB Power Delivery (PD) Charging Specification | 3.0 |
CHARGING
| Total Charging Watts | 60 |
| Charging Ports / Amps | 3A |
PHYSICAL
| Material of Construction | Polycarbonate, ABS, Aluminum |
| Color | Silver |
| Cable Jacket Material | TPE |
| Cable Outer Diameter (OD) | 3.2 mm |
| Cable Length (ft.) | 0.295 |
| Shipping Dimensions (hwd / in.) | 0.78 x 4.72 x 3.94 |
| Shipping Weight (lbs.) | 0.79 |
| Unit Dimensions (hwd / in.) | 0.374 x 1.751 x 1.141 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.05 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 113 °F (0 to 45 °C) |
| Storage Temperature Range | 14 to 158 °F (-10 to 70 °C) |
| Operating Humidity Range | 10 - 85 %, RH, Non-Condensing |
| Storage Humidity Range | 5 - 90 %, RH, Non-Condensing |
| Power Provided to Connected Device(s) | 20V / 3A (60W) |
CONNECTIONS
| Number of Ports | 2 |
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | USB C (FEMALE) |
| Side B - Connector 2 | 3.5MM (FEMALE) |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| Quick Charge Compliant | 2.0 |
STANDARDS & COMPLIANCE
| Certifications | RoHS, REACH, CE, FCC, WEEE |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
