Product Overview
Features

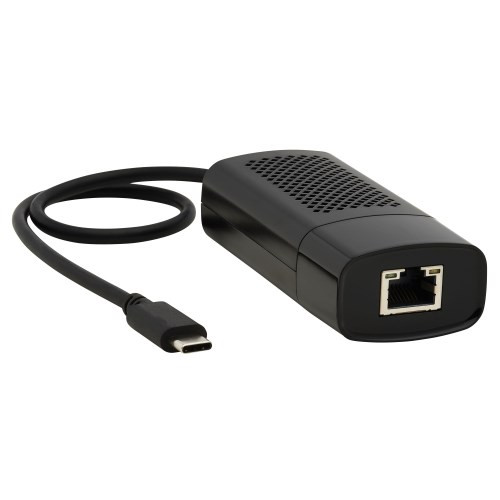

USB-C 3.1 to Gigabit Ethernet Adapter Connects You to a Wired 2.5G Network
This USB-C network adapter instantly connects your MacBook or Windows laptop to a wired network through a USB-C or Thunderbolt 3 port. No internal Ethernet card is required. Ideal for settings in which no Wi-Fi is available or when a wired connection offers faster speeds, this USB 3.1 Gen 1 adapter lets you enjoy true 2.5 Gbps Ethernet speeds for uploading and downloading large files and streaming audio/video without buffering.
Plug-and-Play Operation Gets You Online Immediately
This bus-powered network adapter requires no external power source. Just connect the built-in USB 3.1 Gen 1 Type-C plug to your computer, and use a Cat5e/6 cable (sold separately) to connect the RJ45 end to a network. LEDs indicate when you’re connected to a network and when data is being transferred. The compact unit fits easily into a pocket, purse, backpack or laptop bag for instant file transfers where needed. It’s compatible with Windows, Mac, Chrome and Linux.
Reversible USB-C Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.
System Requirements
- PC, laptop or other compatible device with USB-C or Thunderbolt 3 port (USB 3.1 required to achieve USB 3.1 speeds)
- Windows (10), Mac OS X (10.13 and above), Chrome OS (Linux driver required), Linux Kernel 4.1 and above
Package Includes
- U436-06N-2P5-B USB-C to Gigabit Ethernet Network Adapter (M/F), 2.5G, Black
Specifications
OVERVIEW
| UPC Code | 037332249098 |
| Technology | Cat5/5e; Cat6; Cat6a |
INPUT
| Built-In Cable Length (ft.) | 0.98 |
| Built-In Cable Length (in.) | 11.8 |
| Bus Powered | Yes |
PHYSICAL
| Color | Black |
| Unit Dimensions (hwd / in.) | 0.98 x 1.57 x 3.35 |
| Unit Packaging Type | Polybag |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Storage Temperature Range | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 0 ~ 90% RH |
COMMUNICATIONS
| Network Compatibility | 2.5 Gbps |
| IEEE Standards Supported | 802.1p; 802.1q; 802.3; 802.3ab; 802.3az; 802.3bz; 802.3u; 802.3x |
CONNECTIONS
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | RJ45 (FEMALE) |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.1 Gen 1 (up to 5 Gbps) |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
